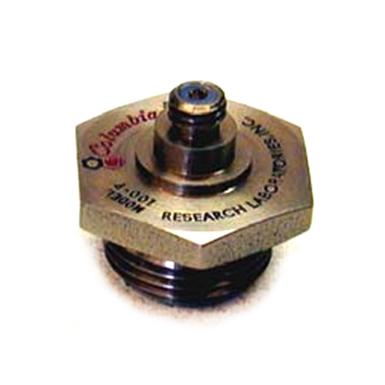

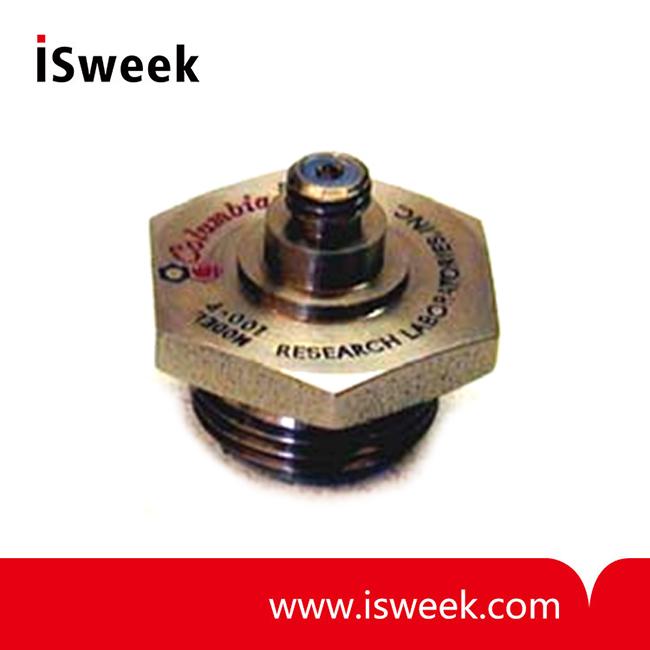

100-P Dynamic Pressure Sensor Description
The Model 100-P sensor is small, lightweight and very ruggedly constructed with a stainless steel case, O-ring seal and flush diaphragm. Its small size, broad frequency response and low cost designates this unit an excellent choice for a wide range of applications.
100-P Dynamic Pressure Sensor Features
• Fast Pressure Variations, Surges & Dynamic Blasts
• Very Low & High Pressure
• Small Size / Lightweight
• Low Cost
100-P Dynamic Pressure Sensor Specifications
NOTES:
1 With Connector Mated or Protected, Unit is Hermetically Sealed.
The Model 100-P High Intensity Acoustic Sensor (Microphone) is designed for measuring exceptionally wide pressure ranges in applications requiring fast rise times and broad frequency response. This sensor is extremely sensitive allowing very low pressure measurements to 0.005 psi as well as high pressure transient measurements to 5,000 psi at temperatures up to +150 Degrees C.
The Model 100-P sensor is small, lightweight and very ruggedly constructed with a stainless steel case, O-ring seal and flush diaphragm. Its small size, broad frequency response and low cost designates this unit an excellent choice for a wide range of applications.
100-P Dynamic Pressure Sensor Features
• Fast Pressure Variations, Surges & Dynamic Blasts
• Very Low & High Pressure
• Small Size / Lightweight
• Low Cost
100-P Dynamic Pressure Sensor Specifications
|
Transfer / Electrical |
|
|
Charge Sensitivity |
150 pC/psi |
|
Pressure Range |
0.005 to 5,000 psi |
|
Pressure Overload (without damage) |
10,000 psi Max. |
|
Frequency Response |
2 to 12,000 Hz |
|
Resonant Frequency |
60 KHz |
|
Amplitude Linearity |
+/-2% |
|
Capacitance |
500 pF |
|
Output Resistance |
1 x 1011 Ohms |
|
Grounding |
Case Grounded |
|
Environmental |
|
|
Temperature Range (Less than +/-10% Variation) |
-65 to +300 Deg F (-54 to +150 Deg C) |
|
Humidity 1 |
0 To 100% R.H. |
|
Physical |
|
|
Size |
0.75 In. Hex. x 0.465 In. H (19 mm Hex x 11.8 mm H) |
|
Weight |
0.55 Oz (15.5 Gm) |
|
Material Body & Diaphragm |
Type 316 Stainless Steel |
|
Electrical Interface |
#10-32 Coaxial Connector |
|
Mounting |
9/16-24 Straight Thread |
1 With Connector Mated or Protected, Unit is Hermetically Sealed.
