Digital Metal Oxide Multi-Gas Sensor

Digital Metal-Oxide Multi-Gas Sensor Description：

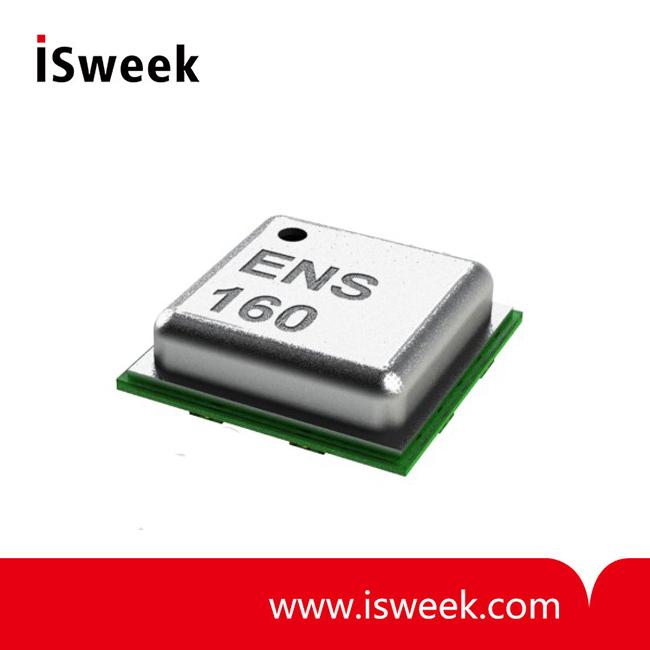

The ENS160 is a digital multi-gas sensor solution, based on metal oxide (MOX) technology with four MOX sensor elements. Each sensor element has independent hotplate control to detect a wide range of gases e.g. volatile organic compounds (VOCs) including ethanol, toluene, as well as hydrogen and nitrogen dioxide with superior selectivity and accuracy.

For indoor air quality applications, the ENS160 supports intelligent algorithms to digitally process raw sensor measurements on-chip. These algorithms calculate CO2-equivalents, TVOC, various air quality indices (AQIs) and perform humidity and temperature compensation, as well as baseline management all on chip! Moreover, a development option is available to digitally output raw sensor measurements from each sensor element for customization. The LGA packaged device includes an SPI or I²C slave interface with separate VDDIO to communicate with a main host processor. The ENS160 is a proven and maintenance-free technology, designed for high volume and reliability.

Digital Metal-Oxide Multi-Gas Sensor Applications:

• Building Automation / Smarthome /HVAC5

     -Indoor air quality detection

     -Demand-controlled ventilation

     -Smart thermostats

• Home appliances

     -Cooker hoods

     -Air cleaners / purifiers

• Mobiles / Wearables

• IoT devices

Digital Metal-Oxide Multi-Gas Sensor Key Features & Benefits:

• TrueVOC air quality detection with industry-leading purity and stability, providing multiple outputs e.g. eCO21, and TVOC in compliance with worldwide IAQ2-signal standards

• Independent Sensor Heater Control for highest selectivity (e.g. to ethanol, toluene and acetone) and outstanding background discrimination

• Immunity to humidity3

• Hassle-free on-chip heater drive control and data processing – no need for external libraries – no mainboard-CPU performance impacts

• Interrupt on Threshold for low-power applications

• Wide operating ranges: temperature: -40to +85°C; humidity: 5 to 95%4; VDD: 1.71 to 1.98V; VDDIO 1.71 to 3.6V

Digital Metal-Oxide Multi-Gas Senso Properties:

• Small-3 x 3 x 0.9mm LGA package

• Design-flexibility through standard, fast and fast mode plus I2C- and SPI interfaces with separate VDDIO up to 3.6V

• T&R packaged, reflow-solderable6
