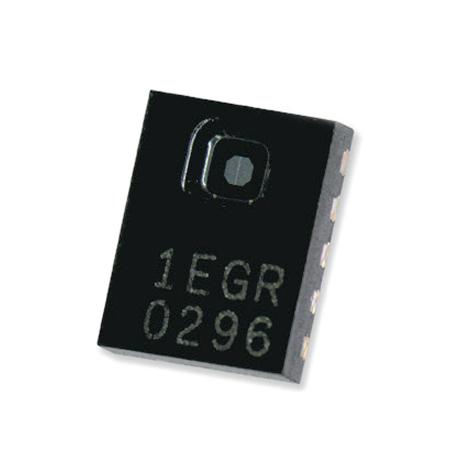

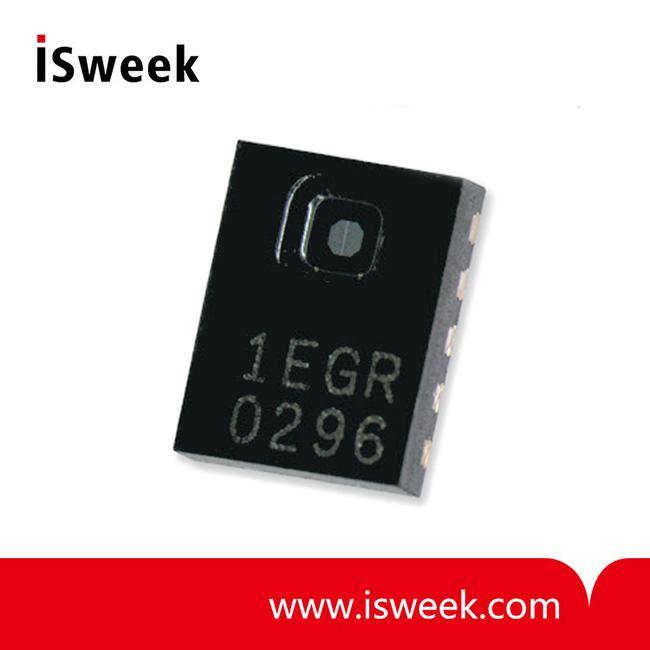

Digital Humidity and Temperature Sensor with 5 V Supply Voltage
-
Price
Price on request ≥1piece
-
Model Number
EEH110 -
Data Sheet
-
Package
Original packaging -
Specs
EEH110 -
Quantity
- +Send Inquiry
Find Similar Products
-
Miniature Digital Relative Humidity and Temperature Sensor
Model Number：HTU21D
MOQ：1
-
Probe Style Relative Humidity Sensor Module
Model Number：HM1500LF
MOQ：1
-
Capacitive Humidity Sensor
Model Number：HS1101/HS1101LF
MOQ：1
-
Voltage Output Temperature and Humidity Sensor
Model Number：HTG3515CH
MOQ：1
-
Humidity and Temperature Sensor Module
Model Number：HTG3535CH
MOQ：1
-
Voltage Output Humidity and Temperature Sensor Module
Model Number：HTG3835PVBL
MOQ：1
Product Description
EEH110 Digital Humidity and Temperature Sensor Description
Well proven humidity sensor element, state-of-the-art ASIC technology and highly accurate humidity and temperature adjustment represent the basis for outstanding performance of the digital humidity and temperature sensor EEH110. The proprietary E+E coating protects the sensor against dirt and corrosion, which leads to excellent long-term stability even in polluted environment. The measured values are available on the digital interfaces I2C, PWM and PDM as well as on an analogue voltage output.
EEH110 Digital Humidity and Temperature Sensor Features
• Multipoint humidity / temperature factory calibration
• Excellent long term stability due to the E+E proprietary coating
• Long standing proven sensor technology

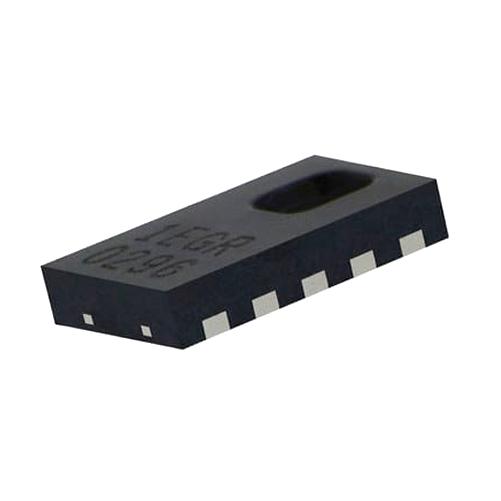

• DFN enclosure 3.6 x 2.8 x 0.75 mm
• 3 digital interfaces: I2C, PWM and PDM + analogue humidity voltage output
• Supply voltage 5 V
EEH110 Digital Humidity and Temperature Sensor Performance
EEH110 is a relative humidity sensor and temperature sensor with band gap circuit, it contains oscillator, A/D convertor, regulator, D/A convertor, NVM, digital processing unit and calibration circuit.
Relative Humidity Sensor
Temperature Sensor
Well proven humidity sensor element, state-of-the-art ASIC technology and highly accurate humidity and temperature adjustment represent the basis for outstanding performance of the digital humidity and temperature sensor EEH110. The proprietary E+E coating protects the sensor against dirt and corrosion, which leads to excellent long-term stability even in polluted environment. The measured values are available on the digital interfaces I2C, PWM and PDM as well as on an analogue voltage output.
EEH110 Digital Humidity and Temperature Sensor Features
• Multipoint humidity / temperature factory calibration
• Excellent long term stability due to the E+E proprietary coating
• Long standing proven sensor technology
• DFN enclosure 3.6 x 2.8 x 0.75 mm
• 3 digital interfaces: I2C, PWM and PDM + analogue humidity voltage output
• Supply voltage 5 V
EEH110 Digital Humidity and Temperature Sensor Performance
EEH110 is a relative humidity sensor and temperature sensor with band gap circuit, it contains oscillator, A/D convertor, regulator, D/A convertor, NVM, digital processing unit and calibration circuit.
Relative Humidity Sensor
|
Parameter |
Condition |
Min |
Typ |
Max | Units |
|
Resolution |
12 bit |
|
0.04 |
|
% RH |
|
8 bit |
|
0.7 |
|
% RH |
|
|
Accuracy Tolerance |
typ |
|
±2.0 |
|
% RH |
|
Repeatability |
12 bit |
|
±0.1 |
|
% RH |
|
Hysteresis |
|
|
±1 |
|
% RH |
|
Response Time |
|
|
|
10 |
sec |
|
Operating Range |
extended |
0 |
|
100 |
% RH |
|
Long Term Drift |
|
|
0.5 |
|
% RH/yr |
Temperature Sensor
|
Parameter |
Condition |
Min | Typ | Max | Units |
|
Resolution |
14 bit |
|
0.01 |
|
°C |
|
12 bit |
|
0.04 |
|
°C |
|
|
Accuracy Tolerance |
14 bit |
|
±0.3 |
|
°C |
|
Repeatability |
12 bit |
|
±0.1 |
|
°C |
|
Response Time |
|
|
|
30(TBD) |
sec |
|
Operating Range |
extended |
-40 |
|
125 |
°C |
|
Long Term Drift |
|
|
0.05 |
|
°C/yr |
