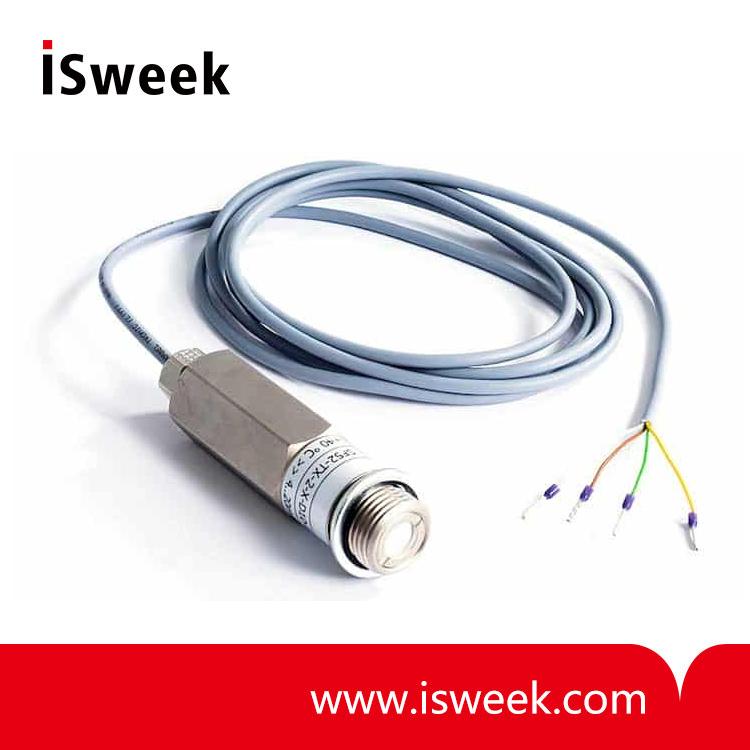

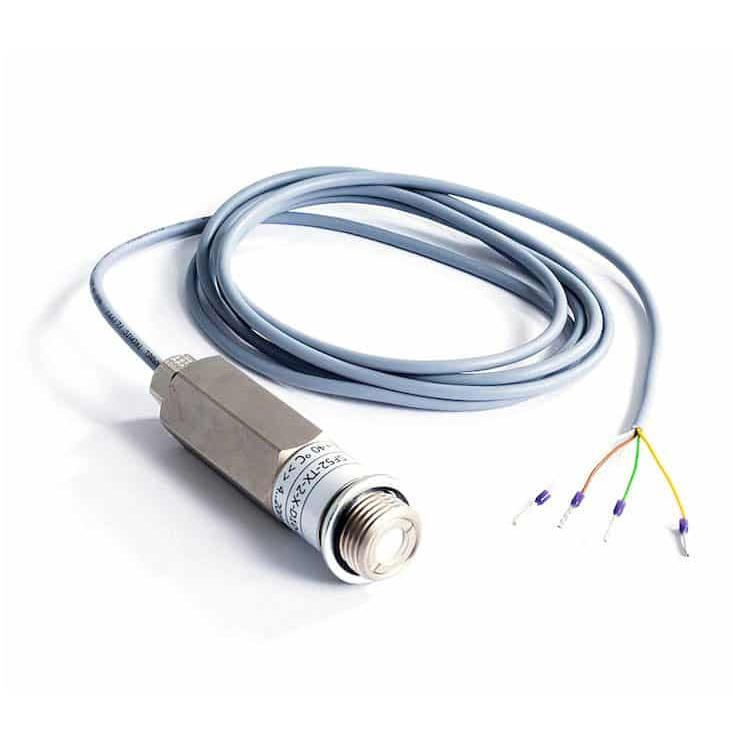

Dew Point Sensor - Moderate Dry Air
-
Price
Price on request ≥1piece
-
Model Number
VPA.8000.1013 -
Data Sheet
-
Package
Original packaging -
Specs
VPA.8000.1013 -
Quantity
- +Send Inquiry
Find Similar Products
-
Miniature Digital Relative Humidity and Temperature Sensor
Model Number：HTU21D
MOQ：1
-
Probe Style Relative Humidity Sensor Module
Model Number：HM1500LF
MOQ：1
-
Capacitive Humidity Sensor
Model Number：HS1101/HS1101LF
MOQ：1
-
Voltage Output Temperature and Humidity Sensor
Model Number：HTG3515CH
MOQ：1
-
Humidity and Temperature Sensor Module
Model Number：HTG3535CH
MOQ：1
-
Voltage Output Humidity and Temperature Sensor Module
Model Number：HTG3835PVBL
MOQ：1
Product Description
VPA.8000.1013 Dew Point Sensor Product Description
VPInstruments’ dew point sensors are designed for ease of use, incorporating all the features needed to make installation and operation as simple as possible. The calibrated transmitters can be instantly incorporated into VPVision or they can be connected to your air or gas management and control system.
Maintaining the dew point of your air or gas system will prolong the life of your equipment. Permanent monitoring enables you to detect and prevent problems in time. We offer various models which meet both moderate dry air (refrigerant dryer) and extreme dry air (dessicant dryer) applications.
VPA.8000.1013 Dew Point Sensor Features and benefits
For moderate dry air
3-wire loop powered connection
Dew point or ppm moisture content
IP66 (NEMA 4X)
Excellent sensor protection
Fast response time
VPA.8000.1013 Dew Point Sensor Application
Moderate dry air (refrigerant dryer)
VPA.8000.1013 Dew Point Sensor Specifications
VPInstruments’ dew point sensors are designed for ease of use, incorporating all the features needed to make installation and operation as simple as possible. The calibrated transmitters can be instantly incorporated into VPVision or they can be connected to your air or gas management and control system.
Maintaining the dew point of your air or gas system will prolong the life of your equipment. Permanent monitoring enables you to detect and prevent problems in time. We offer various models which meet both moderate dry air (refrigerant dryer) and extreme dry air (dessicant dryer) applications.
VPA.8000.1013 Dew Point Sensor Features and benefits
For moderate dry air
3-wire loop powered connection
Dew point or ppm moisture content
IP66 (NEMA 4X)
Excellent sensor protection
Fast response time
VPA.8000.1013 Dew Point Sensor Application
Moderate dry air (refrigerant dryer)
VPA.8000.1013 Dew Point Sensor Specifications
|
Performance |
|
|
Measurement range |
-40 ... +60°C | -40 ... 140 °F dew point |
|
Accuracy (dew point) |
±2°C | ±3.6 °F dew point |
|
Response time |
<10 sec typical (90% of the step change) |
|
Electrical output/input |
|
|
Output signa |
4 ... 20mA (3-wire) |
|
Supply voltage |
8-30VDC |
|
Current consumption |
9mA + load current |
|
Supply voltage influence |
±0.005 % RH/V |
|
operating conditions |
|
|
Operating humidity |
0 ... 95% RH (non-condensing) |
|
Operating temperature |
-30 ... +70°C | -22 ... + 158 °F |
|
Operating pressure |
20 barg maximum |
|
Temperature coefficient |
±0.05 %/°C |
|
Mechanical specifications |
|
|
Ingress protection |
IP65 | NEMA 4 |
|
Housing material |
Nickel-coated brass |
|
Dimensions |
L=85mm, ø24mm (max) | 3,3 x 0,9" |
|
Filter |
HDPE front filter |
|
Process connection |
G1/2 (1/2" BSP) |
|
Connection |
2 m | 6.5 Feet |
