Product Description

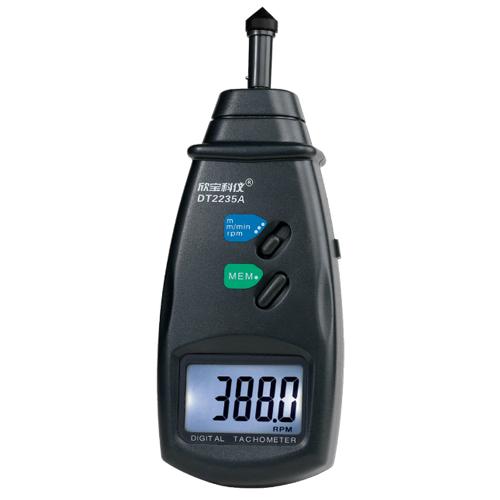

Contact Tachometer
Surface Speed Meter
DT2235A


5 digits 18mm (0.6") White backlight LCD
Accuracy: ±(0.05%+1 digit) of reading
Sampling Time: 0.5sec(over 120RPM)
Range Select: Auto-Ranging
Memory: Max. value, Min. value, Last value
　　　　 Can store 96s data
Power Consumption: Approx 45mA
Time Base: 6MHz Quartz crystal
Time Base Accuracy: 10x10-6(0~50°C)
Measuring Range:
  CONTACT TACH: 0.5~19,999RPM
  SURFACE SPEED: 0.05~1,999,9m/min
Resolution:
  CONTACT TACH:
    0.1RPM From: (0.5~999.9RPM)
    1RPM From: (over 1,000RPM)
  SURFACE SPEED:
    0.01m/min (0.05~99.99m/min)
    0.1m/min (over 100m/min)
Battery: 4 x 1.5V AA Size Battery
