Product Description

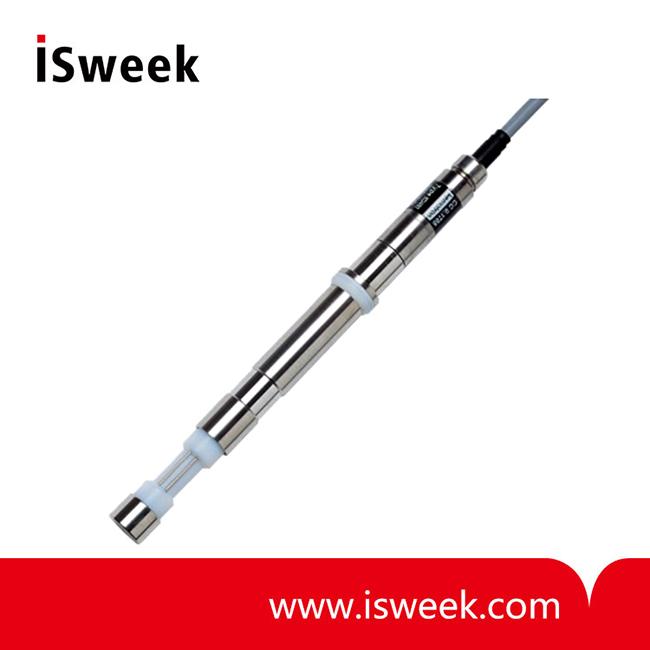

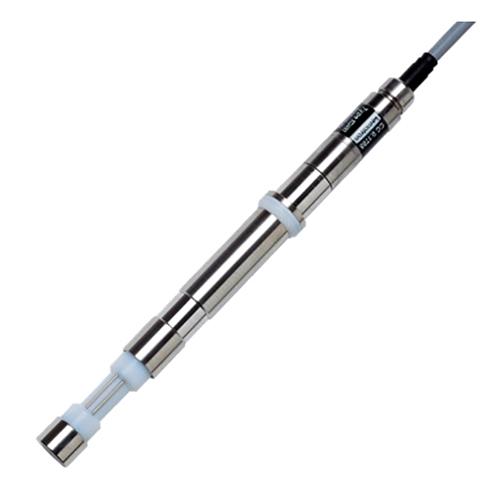

SE 600 Conductivity Sensor
4-electrode sensor for high-pressure and high-temperature applications; large measuring range from pure water up to high conductivities

For special chemistry applications up to 210℃ and 25 bar. Universal measuring range from pure water to 600 mS/cm. With fixed cable and integrated temperature detector.
Process-wetted materials: stainless steel and PTFE; very compact design.

SE 600 Conductivity Sensor Applications
Special chemical processes; condenser monitoring, also for heavily polluted, e.g. fibrous media, pulp production.

SE 600 Conductivity Sensor Facts
 - Large measuring range due to 4-electrode technology
 - Measurement at high temperatures and pressures
 - High level of process safety due to durable materials and robust design
 - Slim, ultracompact design (25 mm diameter)

SE 600 Conductivity Sensor Specifications

Cell constant *)

 0.14 cm ~ 0.38 cm (exact value printed on rating plate)

Measuring range

 approx. 0.5μS/cm ~ 600 mS/cm

Material

 Body PTFE / stainless steel AISI 316 L

Electrodes

 stainless steel AISI 316 L

Temperature detector

 Pt 1000 (IEC Class A)

Temperature

 max. 210℃

Pressure

 max. 25 bar

Process connection

 1" weld nipple (see Accessories)

Cable

 Fixed cable, 5 m

*) Observe instructions for use (field conditions)
