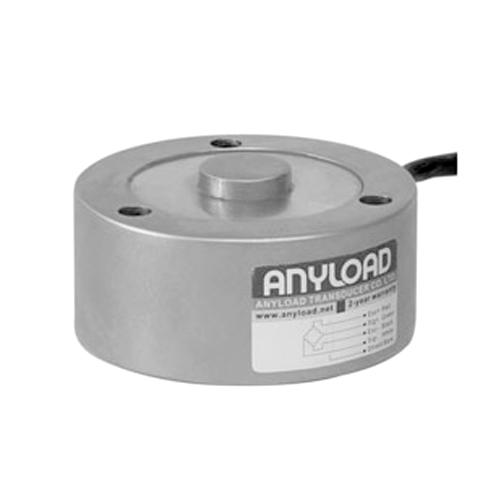

276EH Compression Load Cell



276EH Compression Load Cell Features
• Material: Alloy steel
• Rated Capacities: 5t, 10t, 25t, 50t, 100t
• Full Scale Output: 2.5mV/V ± 10%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP67
• Mounting hardware included

276EH Compression Load Cell Specification

Full Scale Output	2.5 mV/V ±10%
Zero Balance	±0.02 mV/V
Non-linearity	Cap.≤50t: <±0.32%; Cap.≥100t: <±1%
Repeatability	Cap.≤50t: <±0.050%; Cap.≥100t: <±0.2%
Hysteresis Error	Cap.≤50t: <±0.32%; Cap.≥100t: <±2%
Creep in 30 min.	Cap.≤50t: <±0.10%; Cap.≥100t: <±0.1%
Input Resistance	400Ω±20
Output Resistance	350Ω±3
Element Material	Alloy Steel, Nickel Plated
Recommended Excitation	10V (15V Maximum)
Insulation Resistance	>2 [50V DC] GΩ
Compensated Temperature Range	-10°C to 50°C / 14°F to 122°F
Safe Overload	150% of full scale
Breaking Overload	300% of full scale
Seal Type / IP Rating	Environmentally Sealed / IP67
Cable Color Code	Exc+ Red       Exc- Black Sig+ Green    Sig- White Shield Bare

276EH Compression Load Cell Part Number

Rated Capacity	Part No.	Shipping Weight (kg) Approx.
5t	276EH-5t	0.6
10t	276EH-10t	0.9
25t	276EH-25t	1.8
50t	276EH-50t	4.2
100t	276EH-100t-LA	8.7
