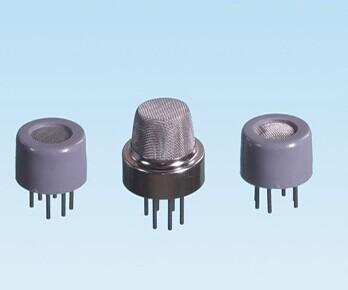

Combustible Gas Sensor Smoke Sensor

Combustible Gas Sensor Smoke Sensor

Specification:

Semiconductor combustible gas sensor MQ-K2 gas-sensitive material used in the clean air low conductivity tin dioxide(SnO2). When there is the environmentin which the combustible gas sensor , conductivity sensor with increasingconcentration of combustible gases in air increases . Using a simple circuit to convert the change in conductivity of the gas concentration corresponding tothe output signal.This sensor can detect a variety of flammable gas , is a low-cost sensors for a variety of applications

Character:

1. MQ-K2 gas sensor with good sensitivity to Combustible gas in widerange,

2. High sensitivity to LPG, Propane andHydrogen,

3. Long life and lowcost,

4. Simple drive circuit.

Application:

1. Domestic gas leakage detector,

2. Industrial Combustible gas detector,

3. Portable gas detector,

Technical Parameter:
Gas: Smoke, Combustible gas
Detection range: 300 to 10000ppm
Characteristic gas: 1000ppm Isobutane
Sensitivity: R in air / R in typical gas ≥ 5
Load Resistance: 1～50KΩ adjustable
Response time: ≤ 30s
Recovery time: ≤ 60s
Heating current: ≤ 150mA
Heating voltage: 5.0V
Measuring voltage: 5～50V
Operating Conditions Ambient temperature: -20～+55℃
                        Humidity: ≤ 95% RH
                        Environmental oxygen content: 21%
Storage conditions Temperature: -20～+70℃

                          Humidity: ≤ 70% RH
