Product Description

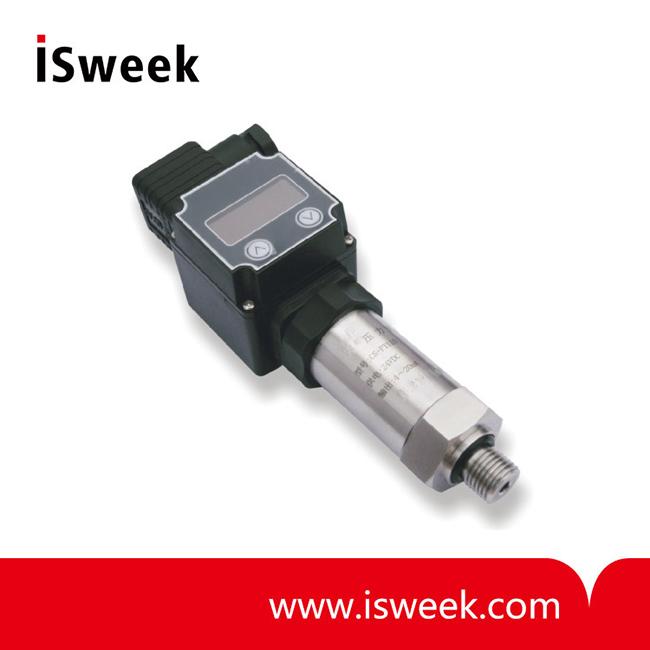

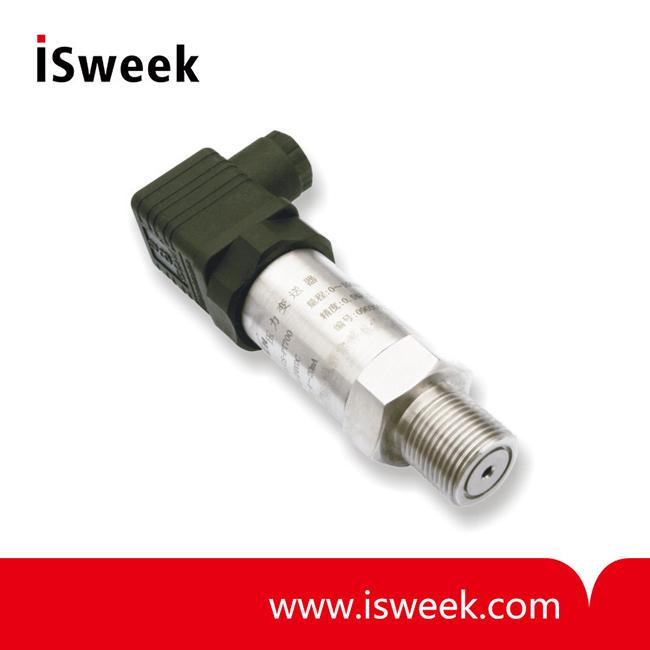

CS-PT1000 Series Ceramic Piezoresistive Pressure Transmitter

CS-PT1000 Series Pressure Transmitter Feature
• 0.5%F.S ~ 1%F.S accuracy
• OEM
• Ceramic sensor
• Multiple pressure ranges and signal output
• Multiple connectors and ports
• Nonpolar two-wire current output
• AC/DC voltage powered
• Intrinsically safe and CE approved

CS-PT1000 Series Pressure Transmitter Appliation
• Gas dispenser
• Refrigerator
• Hydraulic control
• Pressure instrument
• Automatic detection system
• Energy and water treatment
• Real-time custody for oil well

CS-PT1000 Series Pressure Transmitter Introduction
CS-PT1000 series of pressure transmitters are cost-effective products featuring mass production and low cost. They are widely used to detect the pressure of gas and liquid  like water and nature gas.

The product are made of stainless steel, the pressure sensing elements are selected from well-known international brands,. Special circuits are adopted to adjust zero and full range conveniently. The products have been approved with CE, intrinsically safe, and explosion-proof certificates.

Customized structures and outputs formats can be designed according to special application requirement, in addition to standard products.

CS-PT1000 Series Pressure Transmitter Technical parameters

Parameters

Value

Note

Measure Range

0.5Mpa~60MPa

1MPa≈145PSI

Overload Pressure

1.5×RP(rated pressure)



Broken Pressure

2.5×RP(rated pressure)



Accuracy

±0.5% F.S ( MARS & PT300 series have higher accuracy)



Stabilty

Typical  0.25%F.S,               Max  0.4%F.S



Operate Temprature

-40℃~85℃



Compensation Temprature

-10℃~70℃



Media Compatibility

Corrosive medium compatible with Cr18Ni9Ti, ceramics



Wire

Two-wire

Three-wire



Output Signal

4~20mA

0~5V

0~10V



Power Supply

12~30Vdc

10~30Vdc/ac

12~30Vdc/ac

dc/ac means dc and ac are all usable

Load Resistance

(U-10)/0.02(Ω)

>20kΩ



Insulation

>100M Ω@50V



Elec. Connect

DIN43650, Shell protection IP65

Hirschmann Plug(S)



GX16-7, Shell protection IP45

Quick Access Plug(K)



Wire protection (Five), Shell protection IP68



Pressure Port

M20×1.5, G1/2, G1/4, NPT1/2, NPT1/4



Response Time

10ms



Pressure Form

Gauge G, Absolute A



Compliant

CE



EMC

EMI: EN50081-1/-2; EMS: EN50082-2




CS-PT1000 Series Pressure Transmitter Type Selection Guide
