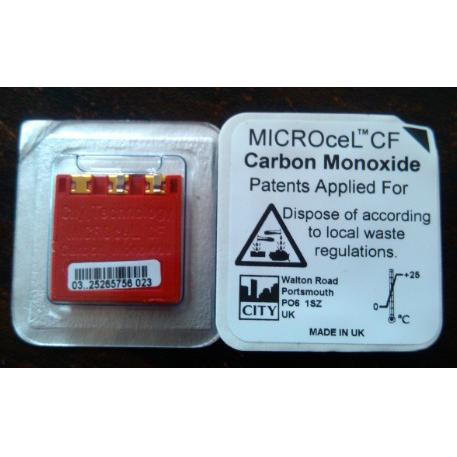

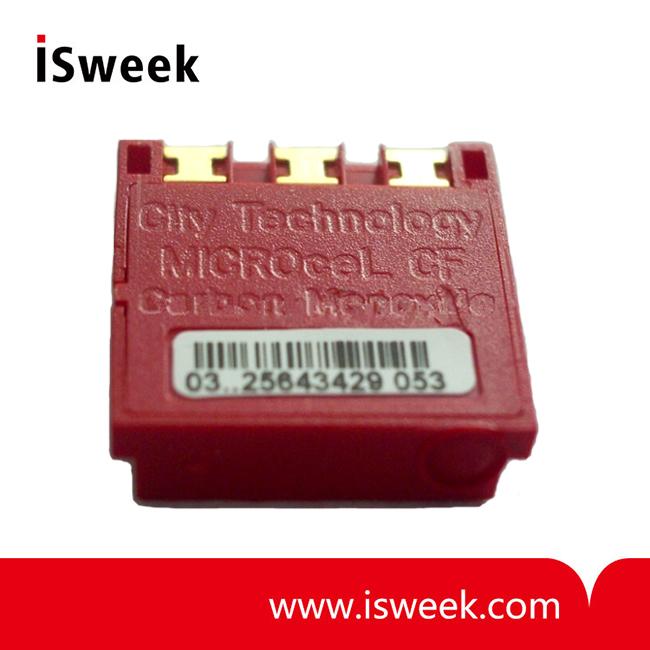

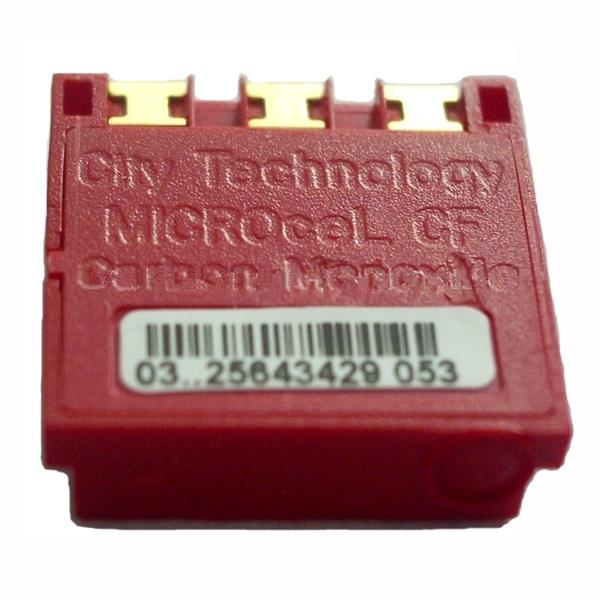

Carbon Monoxide (CO) Gas Sensor

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    MICROceL CF

  • Data Sheet

  • Package

    Original packaging

  • Specs

    MICROceL CF

  • Quantity

    - +

  • Send Inquiry

Product Description

MICROceL CF Carbon Monoxide Sensor (CO sensor) Description
MICRO 3-electrode carbon monoxide sensor with inboard filter.

MICROceL CF Carbon Monoxide Sensor (CO sensor) Key Features & Benefits
• A robust carbon monoxide sensor suitable for portable life safety applications
• Extremely small size

MICROceL CF Carbon Monoxide Sensor (CO sensor) Technical Specifications
MEASUREMENT
Operating Principle
 3-electrode electrochemical
Measurement Range
 0-500 ppm CO
Maximum Overload
 1500 ppm CO
Filter
 To remove TLV levels of interfering gases
Sensitivity*
 0.045 ± 0.01 µA/ppm
T50 Response Time
 <10 Seconds at 20°C
Typical T90 Response Time
 15 to 20 seconds
Baseline Offset (clean air)
 -4 to +2 ppm CO equivalent
Maximum Zero Shift*
(+20°C to +40°C)
 2 ppm CO equivalent
Linearity
 Linear up to 1500 ppm CO


ELECTRICAL
Recommended Load Resistor
 10 Ω
Bias Voltage
 Not Required


MECHANICAL
Weight
 1.2 g
Housing Material
 ABS
Orientation
 Any


ENVIRONMENTAL
Operating Temperature Range
 -40°C to +50°C
Recommended Storage Temp
 0°C to 20°C
Operating Pressure Range
 Atmospheric ± 10%
Operating Humidity Range
 15 - 90% RH non-condensing


LIFETIME
Expected Operating Life
 Two years in air
Long Term Output Drift
 <5% signal loss per year
Storage Life
 6 months in CTL container
* Specifications are valid at 20°C, 50% RH and 1013 mBar, using City Technology recommended circuitry. Performance characteristics outline the performance of sensors supplied within the first 3 months. Output signal can drift below the lower limit over time.
