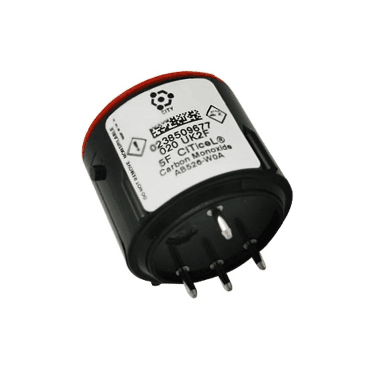

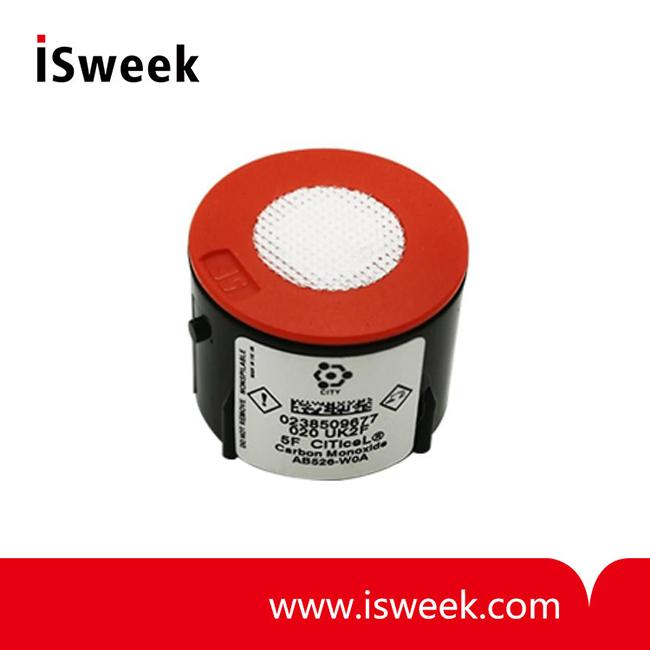

Carbon Monoxide (CO) Gas Sensor

ISweek online 2h ago

Shenzhen Isweek Technology Co., Ltd

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    5F

  • Data Sheet

  • Package

    Original packaging

  • Specs

    5F

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

5F Carbon Monoxide (CO) Gas Sensor Features and Benefits：

• Fast response and recovery time

• Superior long-term performance at temperature and humidity extremes.



5F Carbon Monoxide (CO) Gas Sensor Technical Specifications：

MEASUREMENT

Operating Principle

3-electrode electrochemical

Nominal Range

0 to 4000 ppm CO

Maximum Overload

20,000 ppm CO

Filter

To remove acid gases

Filter Life

> 200,000 ppm hours

(1000 ppm NO @ 500 ml/min)

Sensitivity*

30 ± 6 nA/ppm

Response Time (T90)*

< 40 s

Baseline Offset (clean air)*

-10 to +5 ppm CO equivalent

Baseline Shift:

(+20°C to +40°C)

-10 ppm CO equivalent

Repeatability

1% of signal

Linearity

Linear

ELECTRICAL

Resolution

(Electronics dependent)

1 ppm

Recommended Load Resistor

10 Ω

Bias Voltage

Not required

MECHANICAL

Weight

12.5 g

Orientation Sensitivity

None

ENVIRONMENTAL

Operating Temperature Range

-20°C to +50°C

Operating Pressure Range

Atmospheric ± 10%

Pressure Coefficient

0.007 ± 0.003 %signal/mBar

Operating Humidity Range

15% RH to 90% RH

LIFETIME

Long Term Output Drift*

< 2% signal loss per month

Recommended Storage Temp

0°C to +20°C in sealed container

Expected Operating Life

3 years in air

* Specifications are valid at 20°C, 50% RH and 1013 mBar, using City Technology recommended circuitry. Performance characteristics outline the performance of sensors supplied within the first 3 months. Output signal can drift below the lower limit over time.


5F Carbon Monoxide (CO) Gas Sensor Product Dimensions：
