Product Description

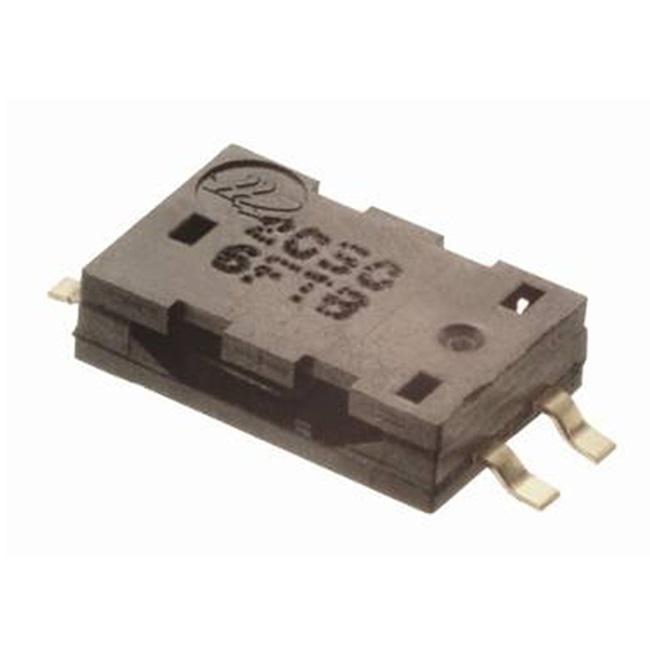

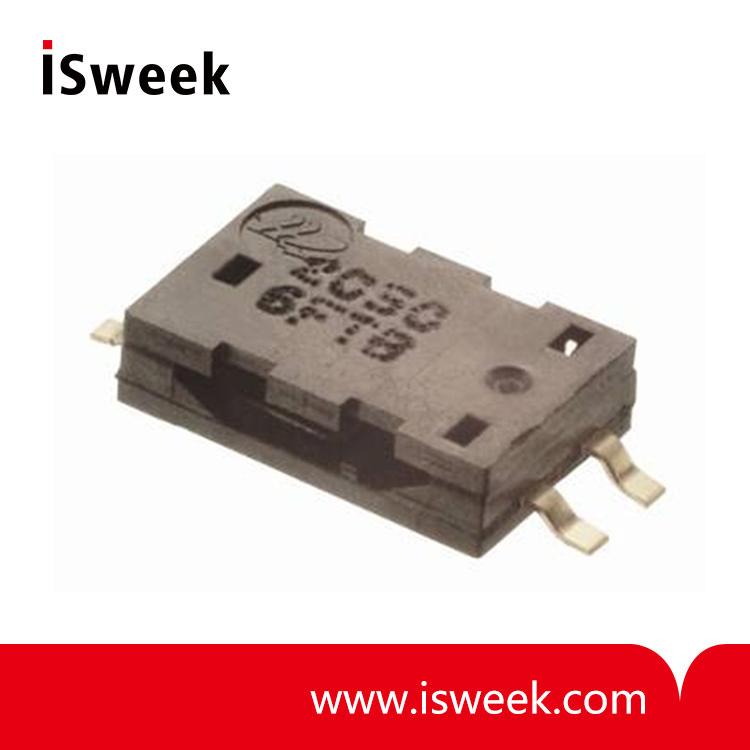

HTS2030SMD Capacitive Temperature and Humidity Sensor

HTS2030SMD Capacitive Temperature and Humidity Sensor Description
Based on a unique capacitive cell for humidity measurement and a Negative Temperature Coefficient (NTC) thermistor for temperature measurement, this dual purpose relative humidity / temperature miniaturized sensor is designed for high volume, cost sensitive applications with tight space constraints. It is useful in all applications where dew point, absolute humidity measurements or humidity compensation are required.

HTS2030SMD Capacitive Temperature and Humidity Sensor Characteristics:
• Humidity measuring range: 1- 99%RH
• Supply voltage: 10V
• nominal capacitance: 177-183PF, (typ 180PF)
• averaged sensitivity from 33% to 75% RH: 0.31PF/%RH
• time constant(33 to 80%RH, still air @63%t: 3s, (max 5s)

HTS2030SMD Capacitive Temperature and Humidity Sensor Main Features:
• Miniature Surface mount SMD package.
• Lead free components.
• Full interchangeability with no calibration required in standard conditions.
• Instantaneous desaturation after long periods in saturation phase.
• Compatible with automatized assembly processes, including Pb free wave soldering and reflow processes.
• High reliability and long term stability.
• Patented solid polymer structure.
• Suitable for linear voltage or frequency output circuitry.
• Fast response time and very low temperature coefficient.
• Part may be washed with distilled water.
• Individual marking for compliance to stringent traceability requirements.
