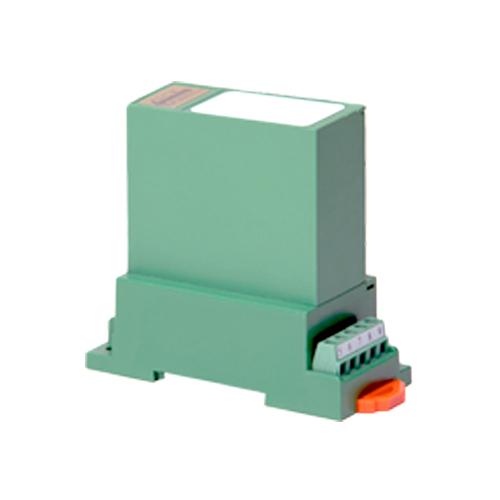

Average RMS AC Voltage Transducer - Three Phase Four Wire (Wye)

Find Similar Products

•

  AC Current Transformer to DC Current (4-20 mA - Loop Powered)

  Model Number：T201

  MOQ：1

•

  DC Current Trasducer to DC Current (4..20 mA - Loop Powered)

  Model Number：T201DC

  MOQ：1

•

  Loop Powered Transmitter for Pt100 and Ni100 Probes

  Model Number：T120

  MOQ：1

•

  Isolated Loop Powered Universal Temperature Transmitter

  Model Number：T121

  MOQ：1

•

  Passive Current Transducers 100 ADC (4-20 mA - Current Loop)

  Model Number：T201DC-100

  MOQ：1

•

  AC/DC Contactless TRMS Direct and Alternate Current Transformers

  Model Number：T201DCH

  MOQ：1

Product Description

The CR4880 Average RMS Voltage Transducers and Transmitters are designed to provide a DC output proportional to the AC voltage input. These devices are best suited for general applications, such as fixed frequency voltage supplies.

CR4880 Average RMS AC Voltage Transducer Features
• 35mm DIN rail mount or panel mount
• 24 Vdc powered
• Outputs isolated from inputs
• Connection diagram printed on case

CR4880 Average RMS AC Voltage Transducer Specifications
• Basic Accuracy: 0.5%
• Calibration: Average RMS sensing
• Thermal Drift: 500 PPM/°C
• Operating Temperature: 0°C to +60°C
• Installation Catagory: CAT II
• Polution Degree: 2
• Response Time: 250 ms
• Altitude: 2000 meter max.
• Insulation Voltage: 2500 Vdc
• Supply Voltage: 24 Vdc ±10%
• Frequency Range: 20 Hz - 5 KHz
• Cleaning: Water-dampened cloth
• MTBF: Greater than 100 K hours
• Output Load: 0-5 Vdc - 2 KΩ or greater 4-20 mA dc - 0 to 300 Ω
• Relative Humidity: 80% for temperatures up to 31°C and decreasing linearly to 50% at 40°C

CR4880 Average RMS AC Voltage Transducer Applications
• Monitor Motor Faults
• Monitor Heating Elements
• Monitor Lighting Elements
• Remote Voltage Sensing

CR4880 Average RMS AC Voltage Transducer PART NUMBERS
