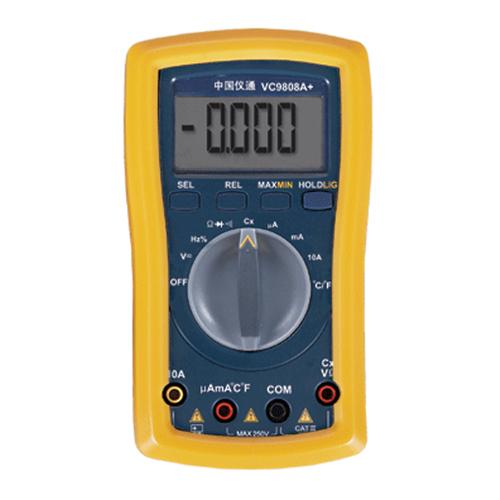

Auto-range / Temperature Digital Multimeter
-
Price
Price on request ≥1piece
-
Model Number
VC9808A+ -
Data Sheet
-
Package
Original packaging -
Specs
VC9808A+ -
Quantity
- +Send Inquiry
Find Similar Products
-
Pen-type Digital Multimeter
Model Number：MS8211/MS8211D
MOQ：1
-
Digital Insulation Tester
Model Number：MS5203/MS5203A
MOQ：1
-
Pocket Digital Multimeter
Model Number： M300
MOQ：1
-
True RMS Benchtop Digital Multimeter
Model Number：M9803R
MOQ：1
-
Digital Multimeter
Model Number：MAS830/MAS830B/MAS830L
MOQ：1
-
Digital Multimeter
Model Number：MAS838
MOQ：1
Product Description
VC9808A+ Digital Multimeter General Feature
• 3 5/6 digit display,6000 count resolution
• Teperature measuring with K-type temperature probe(℃/℉)
• Full protection, no fuse change
• Data hold
• Backlight display
• Auto shut-off
VC9808A+ Digital Multimeter Accessories
ET-01 test leads, shocked-resistanceholster, Temperature probe, user's manual
VC9808A+ Digital Multimeter Measurement Range and Accuracy
|
Function |
Range |
Resoltion |
Accuracy |
|
DC voltage |
600V~1000V |
0.1mV |
±(1.0%+3d) |
|
AC voltage |
60mV~750V |
1mV |
±(1.0%+3d) |
|
AC/DC current |
600μA~2000μA |
0.1μA |
±(2.0%+3d) |
|
AC/DC current |
60mA~200mA/10A |
0.1μA |
±(2.0%+3d) |
|
Resiastance |
600Ω~20MΩ |
0.1Ω |
±(1.0%+3d) |
|
Capacitance |
40nF~4000μF |
1pF |
±(5%+3d) |
|
TEM(℃/°F) |
-40℃~400℃ |
1℃ |
±(2.5%+5d) |
|
Diode |
yes |
Continuity |
yes |
|
Frequency |
1MHz |
Duty |
0.1~99.9 |
