Auto-Range Clamp Multimeter
-
Price
Price on request ≥1piece
-
Model Number
VC3266B -
Data Sheet
-
Package
Original packaging -
Specs
VC3266B -
Quantity
- +Send Inquiry
Product Description

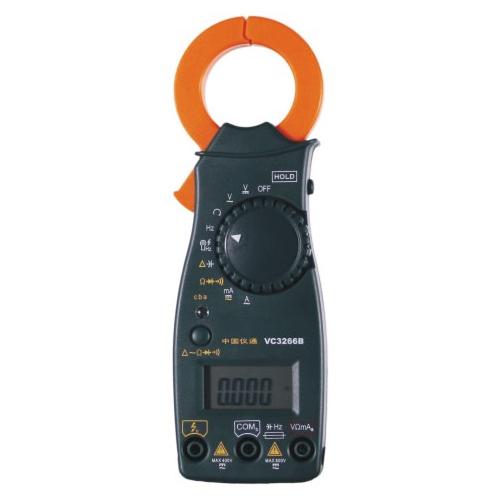

VC3266B Clamp Multimeter General Features
• 3 3/4 digits display, Auto-range
• 4000 count resolution
• AC/DC Voltage, AC Current
• 40nF~100μF Capacitance measurement
• Frequency and phase sequence measurements with special clamp
• Resistance, diode, continuity measurements
• Temperature measurement with semiconductor probe
• Live wire verification
• Data hold and REL
VC3266B Clamp Multimeter Technology Specification:
|
Function |
Range |
Resolution |
Accuracy |
|
DC Voltage |
400mV~600V |
0.1mV |
±(0.8%+3d) |
|
AC Voltage |
4V~600V |
1V |
±(1.2%+3d) |
|
AC Current |
400A~600A |
0.1A/1A |
±(2.0%+5d) |
|
AC/DC Current |
40mA~400mA |
10μA/0.1mA |
±(1.0%+3d) |
|
Resistance |
400Ω~40MΩ |
0.1Ω |
±(1.0%+3d) |
|
40MΩ |
10kΩ |
±(3.0%+5d) |
|
|
Capacitance |
40nF~100μF |
0.1nF |
±(3.0%+5d) |
|
Frequency with Clamp |
10Hz~10kHz |
|
|
