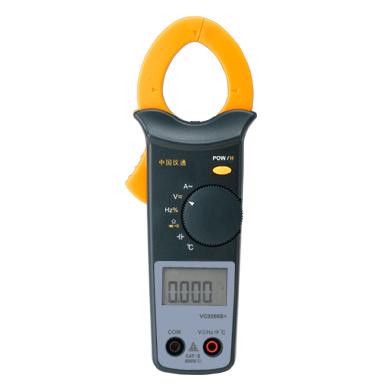

• Auto-Range AC Clamp Multimeter with Thermometer and CPU
Mouse over image to zoom

Auto-Range AC Clamp Multimeter with Thermometer and CPU

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    VC3266B+

  • Data Sheet

  • Package

    Original packaging

  • Specs

    VC3266B+

  • Quantity

    - +

  • Send Inquiry

Product Description

VC3266B+ AC Clamp Multimeter General Features

• 3 3/4 digits display
• 4000 count resolution
• 40A/400A AC current measurement, resolution:10mA
• 400mV~600v DC Voltage measurement
• 4V~600V AC Voltage measurement
• Resistance, continuity and diode measurements
• 0.001Hz~5MHz Frequency measurement and 99% duty cycle
• 10pF~100μF Capacitance measurement
• Temperature measurement with K type temperature probe
• Data hold
• One-key switches and easy to operate with one hand
• Phase Sequence measurement with Phase accessory
• Auto power-off


VC3266B+ AC Clamp Multimeter Technology  Specification:

Function

Range

 Resolution

Accuracy

 DC Voltage

400mV~600V

100μV

±(1.0%+3d)

AC Voltage

4V~600V

1mV

±(1.5%+3d)

AC Current

40A/400A

1mA

±(3.0%+3d)

Resistance

400Ω~40MΩ

10mΩ

±(1.0%+3d)

Temperature

-10℃~400℃

1℃

±(1.0%+5d)
