Product Description

Sensor Development Kit ULPSM
Ultra-Low Power Sensor Module with Printed Sensor


The small form-factor, ultra-low power sensor module (ULPSM) produces a linear voltage output proportional to gas concentration. This module combines the novel sub-millimeter thin electrochemical sensor technology from SPEC Sensors, Inc. with an ultra-low power analog potentiostat circuit.


Target Gas

  Max Range

Carbon Monoxide- CO

  1000 ppm

Hydrogen Sulfide- H2S

  50 ppm

Nitrogen Dioxide- NO2

  20 ppm

Ozone- O3

  20 ppm

Sulfur Dioxide- SO2

  20 ppm

Ethanol-CH6O

  1000 ppm


Printed Sensor Features:
• Sub-millimeter thin electrochemical sensor technology
• Low-cost and high-performance
• Available for a variety of target gases.
• Additional sensors and configurations may be available, please contact us to discuss your application.

ULPSM Features:
• Ultra-low power consumption
• Small form-factor gas sensor and analog front end
• Low-cost and easily replaceable
• Standard 8-pin connector for easy integration
• On-board temperature sensor
• Sensor headers allow replacement of the sensor

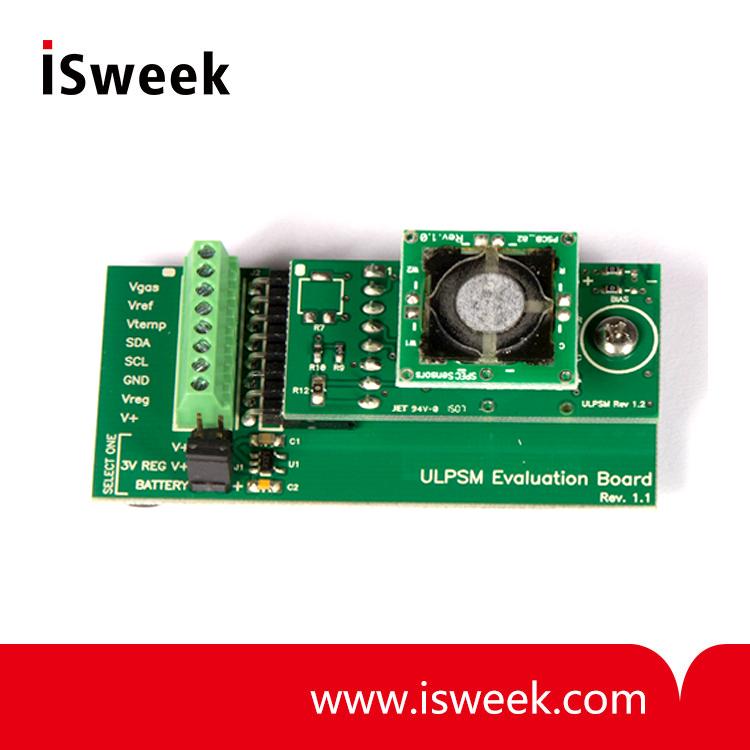

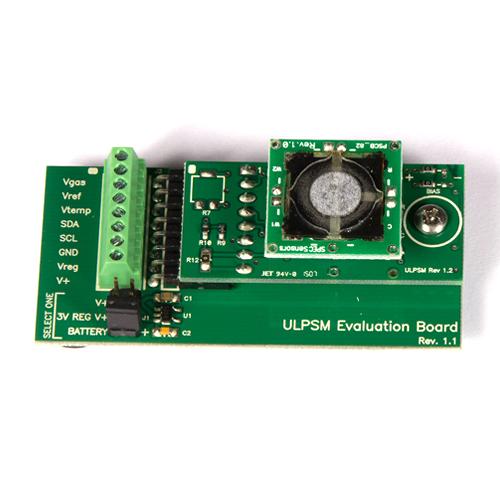

Evaluation Board Features:
• Plug header that replicates the suggested layout for user-implemented solutions.
• Screw terminals for easy connection to external circuits and measurement equipment.
• Jumper-selectable power supply options:
      - CR2032 coin battery (included).
      - External Supply: unregulated and un-fused - do not exceed 3.3 V input.
      - External Supply: 3.0 V regulated - do not exceed 18 V input.
• Unity gain buffers for Vref and Vtemp.
• Insulating rubber feet.

ULPSM Device Connection:
Electrical connections to the ULPSM are made via a rectangular female socket connector (Sullins Connector Solutions P/N: PPPC041LGBN-RC; recommended mate for host board: P/N: PBC08SBAN). This connector also provides mechanical rigidity on one end of the board. A through-hole or threaded standoff (Option -C) is located on the opposite end of the board to provide additional mechanical connection.
