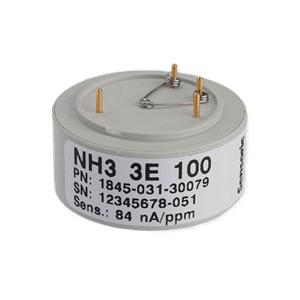

Ammonia Sensor (NH3 Sensor)

ISweek online 2h ago

Shenzhen Isweek Technology Co., Ltd

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    NH3 3E 100

  • Data Sheet

  • Package

    Original packaging

  • Specs

    NH3 3E 100

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

NH3 3E 100 Ammonia Sensor (NH3 Sensor) FEATURES
• Amperometric 3 electrode sensor cell
• Fixed organic gel electrolyte
• No CO2 interference
• 0 volt bias operation

NH3 3E 100 Ammonia Sensor (NH3 Sensor) TYPICAL APPLICATIONS
• TLV-monitoring, leakage detection
• Fixed point applications in cold storages & refrigeration plants only
• For other applications please use NH3 3E SE versions
• No background concentrations of ammonia & alcohols

NH3 3E 100 Ammonia Sensor (NH3 Sensor) TECHNICAL SPECIFICATIONS
Measuring Range
 0-100 ppm
Sensitivity Range
 90 nA/ppm ± 40 nA/ppm
Zero Current at 20°C
 < ± 150 nA
Resolution at 20°C
 < 2 ppm
Bias Potential
 0 mV
Linearity
 <5% full scale
Response Time at 20°C
    t50
    t90
<20s    calculated from 5 min. exposure time
<120s  calculated from 5 min. exposure time
Long Term Sensitivity Drift
 <10% per 6 months
Operation Conditions
    Temperature Range
    Humidity Range
-40°C to +40°C
15-90% r.H, non-condensing
Effect of Humidity
 an abrupt change of r.H. will cause a
short term drift of zero reading
Sensor Life Expectancy
 > 18 months in air
Warranty
 12 months

Safety Note
This sensor is designed to be used in safety critical applications. To ensure that the sensor and/or instrument in which it is used, are operating properly, it is a requirement that the function of the device is confirmed by exposure to target gas (bump check) before each use of the sensor and/or instrument. Failure to carry out such tests may jeopardize the safety of people and property.
