Air Pollution Sensor

Detection of NO2 in ambient air：

    InAir-NO2 is an optochemical sensor based on Insplorion’s patented Nanoplasmonic Sensing technology (NPS). The active sensor element is a semi-transparent glass chip covered with plasmonic nanostructures and a functional coating. Readout is accomplished using light-emitting diodes and photosensitive detectors to measure the interaction between the sensor element and NO2 gas molecules. Concentrations in the range of a few mg/m3 (ppb) can be detected.

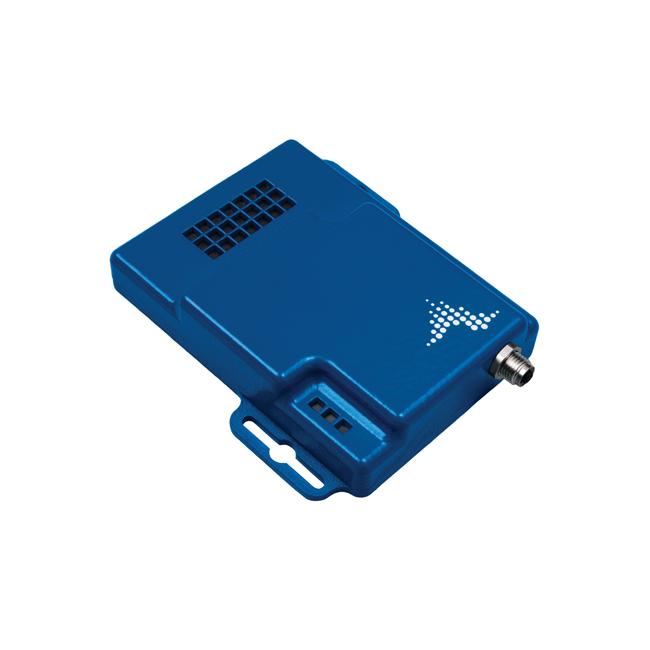

    InAir-NO2 is a miniaturized high performance sensor that enables cost effective detection and measurement of NO2 levels in ambient air.

    The InAir-NO2 is available for both diffusive measurements and with connections for pumped air flow. Both configurations come with a precalibrated sensor element.

    The sensor can be calibrated for optimal performance at a certain temperature and humidity. The drift and temperature compensated signal is presented in ppb by volume [1 ppb NO2 = 1.88 mg/m3]. For purposeful and adaptive calibration at a certain location of interest the raw uncalibrated signal is also presented.

Key features：

• Digital output

• Pre-calibrated

• Proprietary optical sensor technology

• Pumped or Diffusive air flow configuration

• Protective case with slim profile

Applications：

• Urban air quality monitoring; particularly in smart cities

• Ventilation control; in public, commercial, and residential buildings, as well as tunnels and garages

• Industrial safety; for both workers and the environment
