Product Description

T20

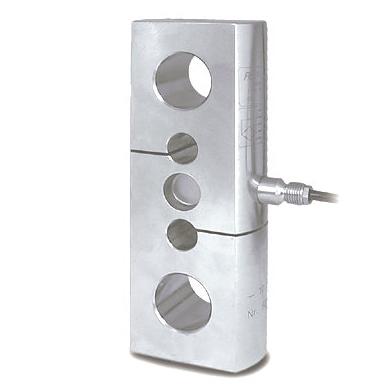

5t to 20t Load Cell


Dimensions


Technical Data

ACCURACY CLASS: OIML R60
 C2
 C3
LEGAL DIVISIONS
 2000
 3000
NOMINAL LOAD (Emax)
 5 - 7.5 - 10 - 15 - 20 t
MINIMUM VERIFICATION INTERVAL (Vmin)
 Emax / 10000
COMBINED ERROR
NON REPEATABILITY
ZERO RETURN over 30 min.
CREEP to nominal load:
a) over 30 min.
b) over 20 and 30 min.
≤ ±0.023%
≤ ±0.014%

≤ ±0.030%


≤ ±0.024%
≤ ±0.011%
≤ ±0.019%
≤ ±0.011%

≤ ±0.013%


≤ ±0.014%
≤ ±0.008%
TEMPERATURE EFFECT (10 °C)
a) on zero
b) on sensitivity



≤ ±0.028%
≤ ±0.008%


≤ ±0.016%
≤ ±0.008%

NOMINAL SENSITIVITY
SENSIVITY TOLERANCE
 2mV/V
≤ ±0.1%
INPUT RESISTANCE
OUTPUT RESISTANCE
INSULATION RESISTANCE
ZERO BALANCE
RECOMMENDED SUPPLY VOLTAGE
NOMINAL SUPPLY VOLTAGE
MAXIMUM SUPPLY VOLTAGE
 420 ± 20 Ω
350 ± 2 Ω
> 5 G Ω
≤ ± 1%
10 V
1-15 V
18 V
MECHANICAL LIMIT values referred to
nominal load:
a) minimum load
b) service load
c) max permissible load
d) breaking load
e) max transverse load
f) max permissible dynamic load
DISPLACEMENT AT NOMINAL LOAD



0%
120%
150%
>300%
200%
50%
~ 0.3 mm

REFERENCE TEMPERATURE
TEMPERATURE NOMINAL RANGE
SERVICE TEMPERATURE
STORAGE TEMPERATURE
+23°C
-10/+40 °C
-20/+70 °C
-20/+80 °C
WEIGHT
PROTECTION CLASS (EN 60529)
EXECUTION MATERIAL
CABLE LENGTH
 ~ 4.4 kg        ~ 7.0 kg
IP68 (100h at 1m water column)
Acciaio Inox / Stainless Steel
5m
