450nm Blue Laser 400W | Vivlaser
-
Price
Price on request ≥1piece
-
Model Number
Vivlaser-B400 -
Data Sheet
-
Package
木箱 -
Specs
台 -
Quantity
- +Send Inquiry
Find Similar Products
Product Description

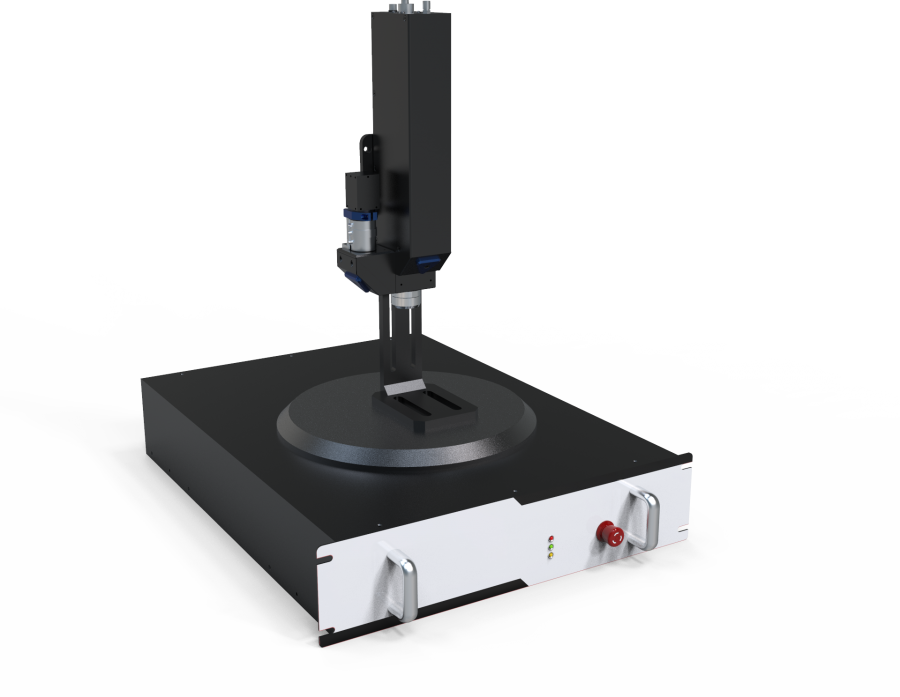

The Vivlaser-B400 is a compact 400W pure blue laser welding module designed for high-reflective metals such as copper, gold. With a customizable 0.4 mm spot size and stable, high-power output, it ensures spatter-free, smooth weld seams—ideal for precision industrial welding and dissimilar material joining
Features
- Output power: 400W
- Power adjustment range: 10%–100%
- Focused spot size: 0.4 mm
- Aiming Beam: 2 mW
- Input voltage: ~220V/50Hz, rated power consumption ≤1400 W
- Cable length (laser to power supply): 3 m
- Welding head weight: ≤5 kg, Power supply weight: ≤8 kg
- Operating temperature: 10–40 ℃
- Cooling requirement: ≥5 L/min, nominal cooling capacity 1600 W
Functions:
- Gold Welding
- Copper Welding
- Dissimilar Materials Welding (e.g., copper & stainless steel)
Parameters
| Model: V1-B400 | Unit | Spec. | |
|---|---|---|---|
| Optical parameters | Output power | W | 400W |
| Power adjustment range | % | 10%~100% | |
| Focused spot size | mm | 0.4mm | |
| Aiming Beam | mW | 2 | |
| Cable length from the laser to the power supply | m | 3 | |
| Input voltage Vop | V | ~220V/50Hz | |
| Rated power consumption | W | ≤1400 | |
| Welding head parameters | Maximum allowable power | W | 400W |
| Working distance (from copper nozzle to workpiece surface) | mm | 79.2±1mm | |
| Number of protective mirrors | Unit | 2 | |
| Coaxial air blowing device | / | Yes | |
| Thermal parameters | Operating temperature | ℃ | 10-40 |
| Storage temperature | ℃ | 0-60 | |
| Nominal cooling capacity | W | 1600 | |
| Cooling water flow rate | L/min | ≥5 | |
| Weight | Weight of the laser welding head | Kg | ≤5 |
| Weight of the power supply | Kg | ≤8 | |
| The tests for all parameters were conducted at 25°C. | |||
