Product Description
TCE

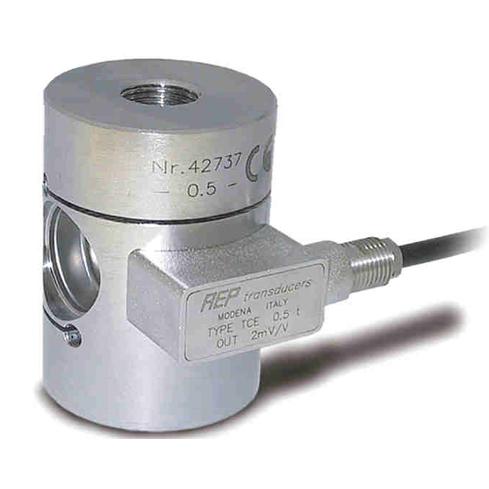

350kg to 20t Load Cell
Dimensions [mm]
Technical Data
|
NOMINAL LOAD |
350 - 500 kg
1 - 2.5 – 5 (1) -7.5 -10 -20 t
|
|
NOMINAL SENSITIVITY SENSITIVITY TOLERANCE |
2mV/V ≤ ±0.1% |
|
TEMPERATURE EFFECT (10 °C) a) on zero b) on sensitivity |
≤ ±0.030% |
|
LINEARITY HYSTERESIS REPEATABILITY |
≤ ±0.03% ≤ ±0.03% ≤ ±0.01% |
|
INPUT RESISTANCE OUTPUT RESISTANCE INSULATION RESISTANCE ZERO BALANCE RECOMMENDED SUPPLY VOLTAGE NOMINAL SUPPLY VOLTAGE MAXIMUM SUPPLY VOLTAGE |
420 ± 20Ω 350 ± 2Ω >5 GΩ ≤ ±1% 10 V 1-15 V 18 V |
|
MECHANICAL LIMIT VALUES REFERRED TO NOMINAL LOAD : a) service load b) max permissible load c) breaking load d) max transverse load e) max permissible dynamic load DISPLACEMENT AT NOMINAL LOAD |
120% |
|
REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE SERVICE TEMPERATURE STORAGE TEMPERATURE |
+23°C -10/+40 °C -20/+70 °C -20/+80 °C |
|
WEIGHT PROTECTION CLASS (EN 60529) EXECUTION MATERIAL CABLE LENGTH |
Ø57:∼1.5 kg Ø82:∼4.2 kg 20t:~5kg IP67 Acciaio Inox / Stainless Steel 5 m |
|
RECOMMENDED KNUCKLE JOINTS |
DURBAL EM20 - EM30 |
