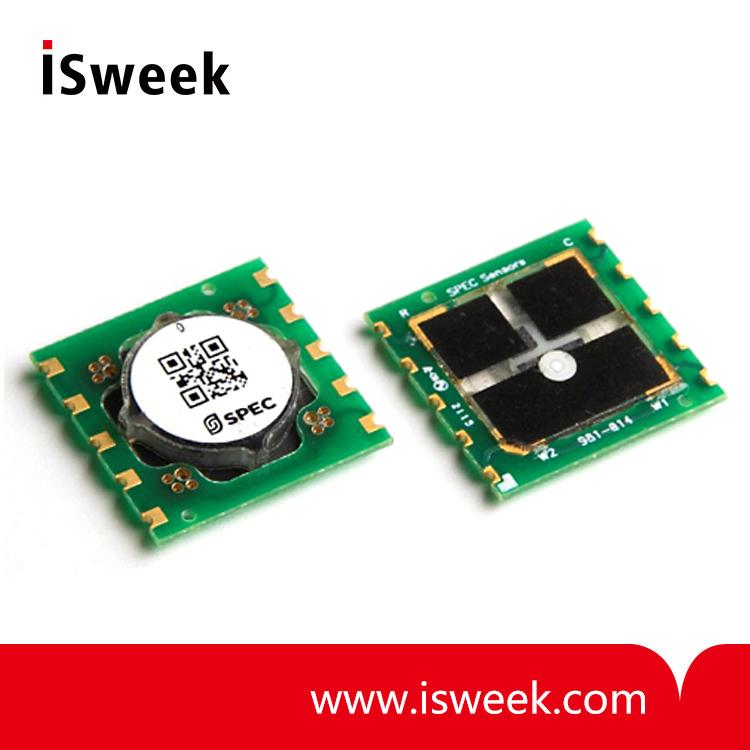

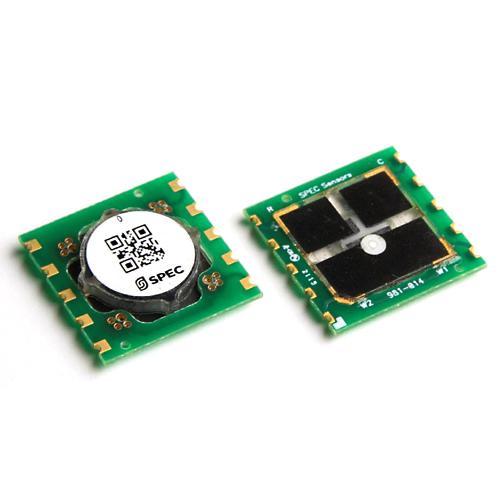

15x15 Ozone Sensor O3 Sensor C Package 110-407
-
Price
Price on request ≥1piece
-
Model Number
3SP_O3_20 C -
Data Sheet
-
Package
Original packaging -
Specs
3SP_O3_20 C -
Quantity
- +Send Inquiry
Product Description
15x15 O3 Sensor C Package 110-407
3SP_O3_20 C Ozone Sensor O3 Sensor Description
SPEC's printed electrochemical gas sensors offer high performance at a fraction of the price. SPEC’s printed sensors are also ultra-thin, offering easy integration into wireless, portable, and networked solutions. These sensors are ideal for health, environmental, industrial and residential monitoring, because of their high performance, low cost and small size.
3SP_O3_20 C Ozone Sensor O3 Sensor Benefits
• Small Size with Low Profile (20 x 20 x 3 mm)
• Long Life (10 years expected life)
• Fast Response (< 15 seconds)
• Low Power Consumption
• Individually Calibrated (NIST Traceable)
• ROHS Compliant
• Improved stability and low ppb performance
3SP_O3_20 C Ozone Sensor O3 Sensor Applications
• Air Quality Monitoring
• Industrial Safety
• Air Purification Control
3SP_O3_20 C Ozone Sensor O3 Sensor Specifications
|
Measurement Range |
0 to <20 ppm |
|
Lower Detectable Limit |
< 20 ppb (instrumentation dependent) |
|
Resolution |
< 20 ppb (instrumentation dependent) |
|
Response Time |
< 15 seconds typical |
|
Sensitivity nA/ppm @ 5ppm |
-60 +/- 10 nA/ppm |
|
Expected Operating Life |
> 5 years (10 years @ 23+/-3C; 40+/-10% RH) |
|
Operating Temperature Range |
-30 to 50°C (-20 to 40°C continuous) |
|
Operating Humidity Range- non-condensing |
0 to 100% RH (15 to 95% continuous) |
|
Power Consumption |
10 to 50 uW (circuit & ambient O3 dependent) |
3SP_O3_20 C Ozone Sensor O3 Sensor Cross Sensitivity
|
Gas/Vapor |
Concentration |
Typical Response PPM O3 |
|
Methane |
500 ppm |
< 0.05 |
|
Nitrogen Dioxide |
5 ppm |
5 |
|
Hydrogen Sulfide |
25 ppm |
-12.5 |
|
Carbon Monoxide |
400 ppm |
< 0.05 |
|
Ozone |
5 ppm |
5 |
|
Chlorine |
10 ppm |
10 |
|
n-Heptane |
500 ppm |
-0.2 |
