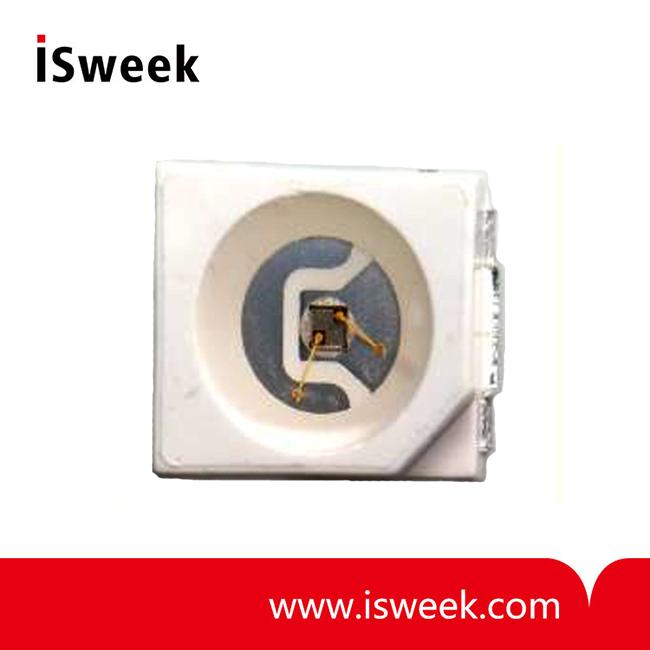

UVB Sensor
-
Price
Price on request ≥1piece
-
Model Number
GUVB-S11SD -
Data Sheet
-
Package
Original packaging -
Specs
GUVB-S11SD -
Quantity
- +Send Inquiry
Find Similar Products
-
Broadband SiC Based UV Photodiode A = 0.06 mm2
Model Number：SG01S-18
MOQ：1
-
Broadband SiC Based UV Photodiode A = 0.06 mm2
Model Number：SG01S-18S
MOQ：1
-
Reflective UV Sensor
Model Number：GenUV-L365P-MM
MOQ：1
-
Reflective UV Sensor
Model Number：GUVF-P12MD
MOQ：1
-
UV-A Sensor
Model Number：GUVA-S12SD
MOQ：1
-
UV-A Sensor
Model Number：GUVA-T11GD
MOQ：1
Product Description

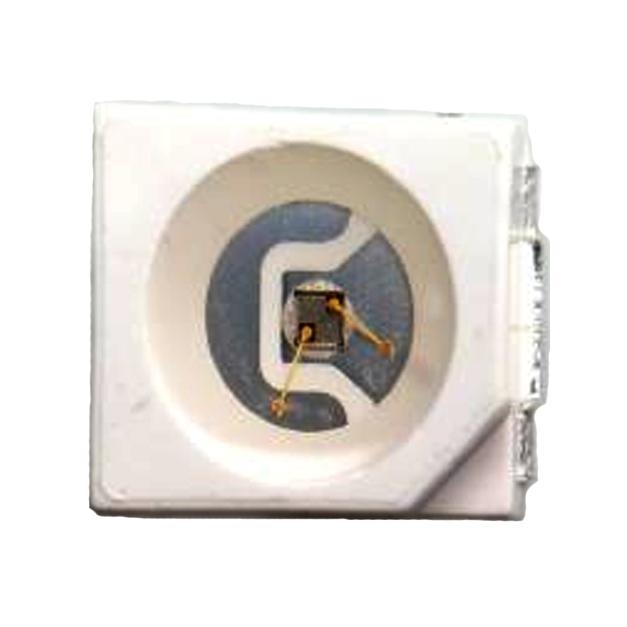

1. GUVB-S11SD UVB Sensor Ftatures
- Chip size:0.4mm,SMD 3528 PKG
- Aluminium Gallium Nitride Based Material
- Schottky-type Photodiode
- Photovoltaic Mode Operation
- Good Visible Blindness
- High Responsivity & Low Dark Current
2. GUVB-S11SD UVB Sensor Application
UV Index Monitoring
3. GUVB-S11SD UVB Sensor Outline Diagrams and Dimensions
4. GUVB-S11SD UVB Sensor Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 3V
Forward Current: 1mA
Optical Source Power Range: 0.1µ~100m W/cm2
Soldering Temperature: 260℃
5. GUVB-S11SD UVB Sensor Characteristics (at 25℃)
Dark Current: 1nA
Temperature Coefficient: 0.1%/℃
Responsivity: 0.11A/W
Spectral Detection Range: 240~320nm
Active area: 0.076mm2
