Product Description

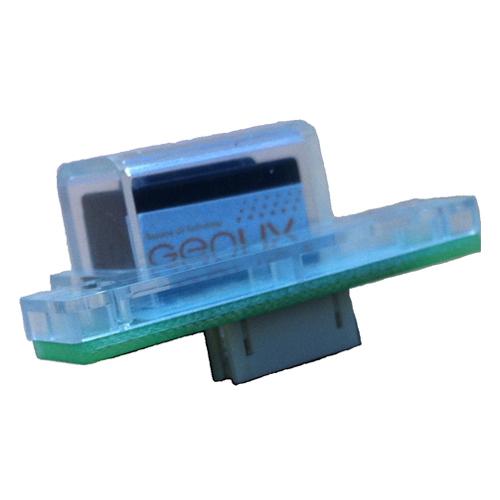

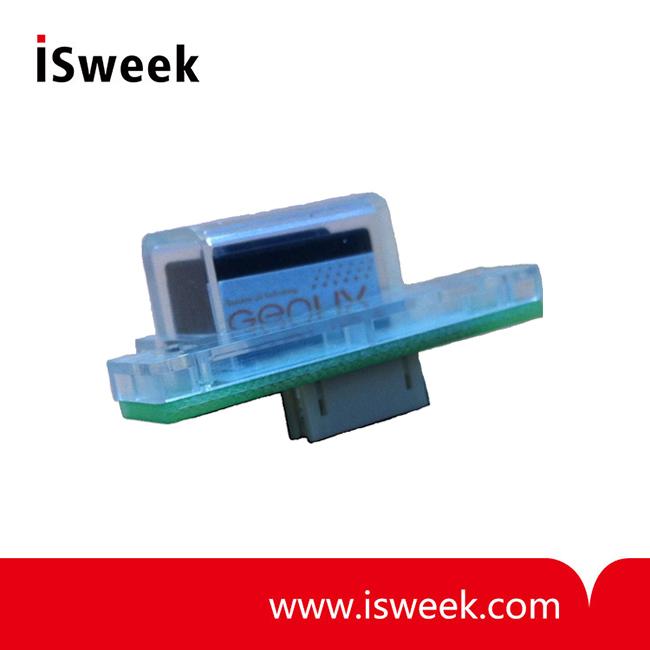

GenUV-L365P-MM Reflective UV Sensor Features
Light Emission Wavelength - 365nm
Emitting part- Visible range absorbing filter
Receiving part - UV absorbing filter
Responsing to fluorescence ink

GenUV-L365P-MM Reflective UV Sensor Applications
Money detecting
Counterfeits bill detecting

GenUV-L365P-MM Reflective UV Sensor Outline Diagrams


GenUV-L365P-MM Reflective UV Sensor Absolute Maximum Ratings

Parameter	Symbol	Min.	Typ.	Max.	Unit	Remark
Storage Temperature	Tst	-40		90	℃
Operating Temperature	Top	-30		85	℃
Supply Voltage	VCC			5.5	VDC
Soldering Temperature	Tsol			260	℃	Within 10 sec

GenUV-L365P-MM Reflective UV Sensor Electro-Optical Characteristics (at 25 ℃)

Parameter	Symbol	Min.	Typ.	Max.	Unit	Remark
Supply Voltage	VCC	1.8		5.5	V	DC
Supply Current	IQ		10	20	mA
Emission Wavelength	λ		365		nm	IF=10㎃
Detection Range	P	400		1000	nm	< 5% transmittance
Output Voltage	VO			10	mV	No object, in dark
			2.7		V	90% reflector paper
Detecting distance	d		2		mm	Max. Vout
