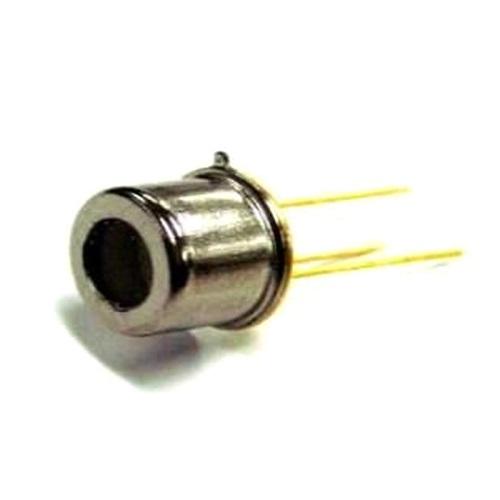

UVA Sensor
-
Price
Price on request ≥1piece
-
Model Number
GUVA-T21GD-U -
Data Sheet
-
Package
Original packaging -
Specs
GUVA-T21GD-U -
Quantity
- +Send Inquiry
Find Similar Products
-
Broadband SiC Based UV Photodiode A = 0.06 mm2
Model Number：SG01S-18
MOQ：1
-
Broadband SiC Based UV Photodiode A = 0.06 mm2
Model Number：SG01S-18S
MOQ：1
-
Reflective UV Sensor
Model Number：GenUV-L365P-MM
MOQ：1
-
Reflective UV Sensor
Model Number：GUVF-P12MD
MOQ：1
-
UV-A Sensor
Model Number：GUVA-S12SD
MOQ：1
-
UV-A Sensor
Model Number：GUVA-T11GD
MOQ：1
Product Description
1. UVA Sensor GUVA-T21GD-U Features
Gallium Nitride Based Material
Schottky-type Photodiode
Photovoltaic Mode Operation
Good Visible Blindness
High Responsivity & Low Dark Current
2. UVA Sensor GUVA-T21GD-U Applications
Full UV Band Monitoring
UV-A Lamp Monitoring
3.UVA Sensor GUVA-T21GD-U Outline Diagrams and Dimensions
4. UVA Sensor GUVA-T21GD-U Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 5V
Forward Current: 1mA
Optical Source Power Range: 0.001µ~1000m W/cm2
Soldering Temperature: 260℃
5. UVA Sensor GUVA-T21GD-U Characteristics (at 25℃)
Dark Current(Max.): 90nA
Photo Current(Typ.): 15.6µA
Temperature Coefficient: 0.05%/℃
Responsivity: 0.18A/W
Spectral Detection Range: 220~370nm
Active area: 6.894mm2
