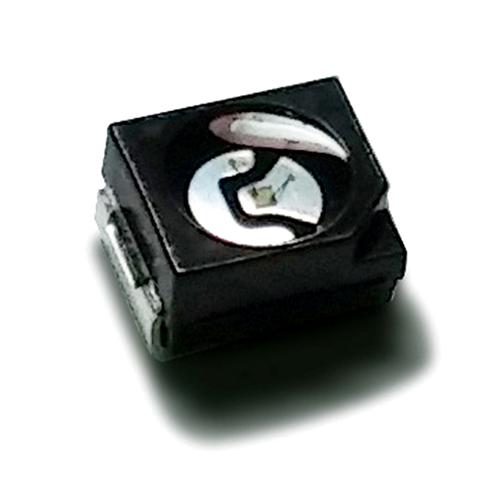

UV / Visible Sensor
-
Price
Price on request ≥1piece
-
Model Number
GVGR-S11SD -
Data Sheet
-
Package
Original packaging -
Specs
GVGR-S11SD -
Quantity
- +Send Inquiry
Find Similar Products
-
Broadband SiC Based UV Photodiode A = 0.06 mm2
Model Number：SG01S-18
MOQ：1
-
Broadband SiC Based UV Photodiode A = 0.06 mm2
Model Number：SG01S-18S
MOQ：1
-
Reflective UV Sensor
Model Number：GenUV-L365P-MM
MOQ：1
-
Reflective UV Sensor
Model Number：GUVF-P12MD
MOQ：1
-
UV-A Sensor
Model Number：GUVA-S12SD
MOQ：1
-
UV-A Sensor
Model Number：GUVA-T11GD
MOQ：1
Product Description
1. GVGR-S11SD UV / Visible Sensor Features
SMD3528 with Si-encapsulant
Indium Gallium Nitride Based Material
PN-type Photodiode
Photovoltaic Mode Operation
High Responsivity & Low Dark Current
2. GVGR-S11SD UV / Visible Sensor Applications
UV LED Monitoring (385, 405nm, etc.)
Blue LED Monitoring
UVA Lamp Monitoring
UV Curing
3. GVGR-S11SD UV / Visible Sensor Outline Diagrams and Dimensions
4. GVGR-S11SD UV / Visible Sensor Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 5V
Forward Current: 1mA
Soldering Temperature: 260℃
5. GVGR-S11SD UV / Visible Sensor Characteristics (at 25℃)
Dark Current(Max.): 1nA
Photo Current(Typ.): 44nA (405nm LED, 1mW/cm2)
Responsivity: 0.07A/W
Spectral Detection Range: 295~490nm
