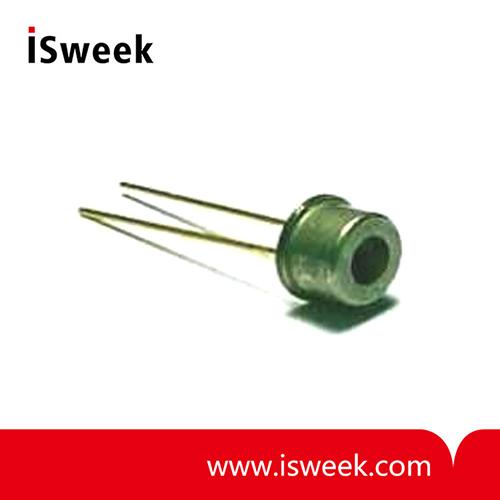

UV / Visible Sensor
-
Price
Price on request ≥1piece
-
Model Number
GVBL-T12GD -
Data Sheet
-
Package
Original packaging -
Specs
GVBL-T12GD -
Quantity
- +Send Inquiry
Find Similar Products
-
Broadband SiC Based UV Photodiode A = 0.06 mm2
Model Number：SG01S-18
MOQ：1
-
Broadband SiC Based UV Photodiode A = 0.06 mm2
Model Number：SG01S-18S
MOQ：1
-
Reflective UV Sensor
Model Number：GenUV-L365P-MM
MOQ：1
-
Reflective UV Sensor
Model Number：GUVF-P12MD
MOQ：1
-
UV-A Sensor
Model Number：GUVA-S12SD
MOQ：1
-
UV-A Sensor
Model Number：GUVA-T11GD
MOQ：1
Product Description
1. GVBL-T12GD UV / Visible Sensor Features
TO-46 with quartz glass
Indium Gallium Nitride Based Material
PN-type Photodiode
Photovoltaic Mode Operation
High Responsivity & Low Dark Current
2. GVBL-T12GD UV / Visible Sensor Applications
UV LED Monitoring (365, 385nm, etc.)
Blue LED Monitoring
UVA Lamp Monitoring
UV Curing
3. GVBL-T12GD UV / Visible Sensor Outline Diagrams and Dimensions
4. GVBL-T12GD UV / Visible Sensor Absolute Maximum Ratings
Storage Temperature: -40~90℃Operating Temperature: -30~85℃
Reverse Voltage: 5V
Forward Current: 1mA
Soldering Temperature: 260℃
5. GVBL-T12GD UV / Visible Sensor Characteristics (at 25℃)
Dark Current(Max.): 1nA
Photo Current(Typ.): 550nA (385nm LED, 1mW/cm2)
Responsivity: 0.13A/W
Spectral Detection Range: 330~445nm
