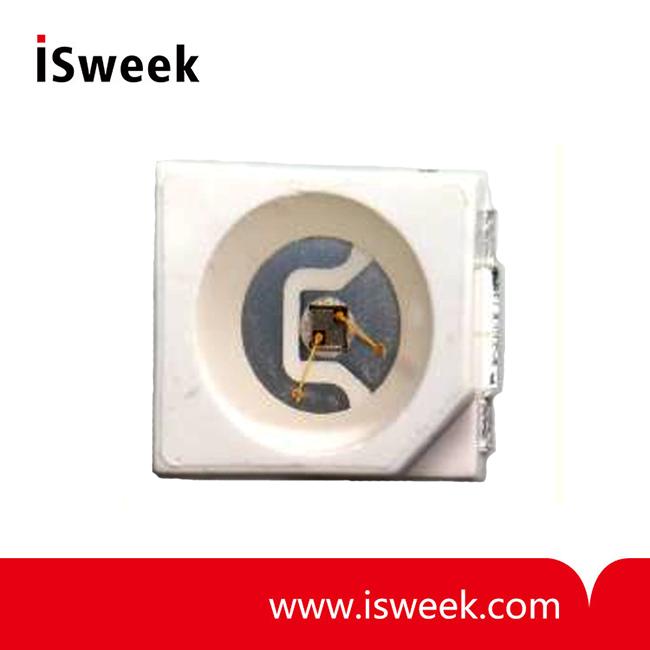

• UV / Visible Sensor

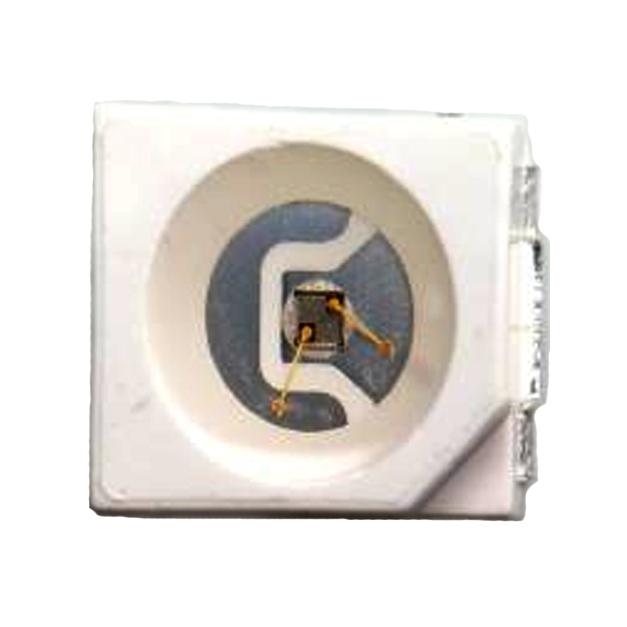

  • UV / Visible Sensor

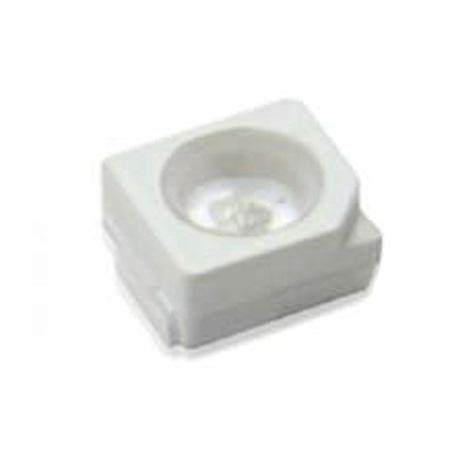

  • UV / Visible Sensor
Mouse over image to zoom

UV / Visible Sensor

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    GVBL-S12SD

  • Data Sheet

  • Package

    Original packaging

  • Specs

    GVBL-S12SD

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

1. GVBL-S12SD UV / Visible Sensor Features

SMD3528 with Si-encapsulant
Indium Gallium Nitride Based Material
PN-type Photodiode
Photovoltaic Mode Operation
High Responsivity & Low Dark Current


2. GVBL-S12SD UV / Visible Sensor Applications

UV LED Monitoring (385, 405nm, etc.)
Blue LED Monitoring
UVA Lamp Monitoring
UV Curing


3. GVBL-S12SD UV / Visible Sensor Outline Diagrams and Dimensions



4. GVBL-S12SD UV / Visible Sensor Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 5V
Forward Current: 1mA
Soldering Temperature: 260℃

5. GVBL-S12SD UV / Visible Sensor Characteristics (at 25℃)
Dark Current(Max.): 1nA
Photo Current (Typ.): 90nA (UVA (352nm), 1mW/cm2);
                                 790nA (405nm LED, 1mW/cm2)
Responsivity: 0.68A/W
Spectral Detection Range: 345~450nm
