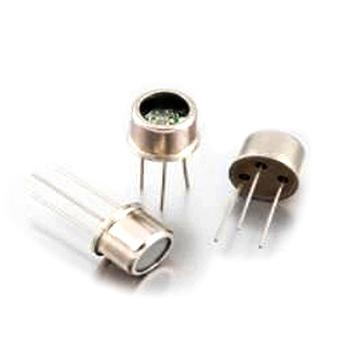

UV Sensor Module

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    GUVV-T21GH

  • Data Sheet

  • Package

    Original packaging

  • Specs

    GUVV-T21GH

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

1. GUVV-T21GH UV Sensor Module Features

Single Supply Voltage Operation
Voltage Output
High Sensitivity and Good Solar Blindness
Small and Compact Size


2. GUVV-T21GH UV Sensor Module Applications

UV-A Lamp Monitoring


3. GUVV-T21GH UV Sensor Module Outline Diagrams and Dimensions


4. GUVV-T21GH UV Sensor Module Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Supply Voltage: 5.5V
Soldering Temperature: 260℃

5. GUVV-T21GH UV Sensor Module Characteristics (at 25℃)
Supply Voltage: 1.8~5.5V
Supply Current: 50µA
Responsivity: 1mV/nW
Spectral Detection Range: 230~395nm
Output Voltage: 1.55V
Offset Voltage: 0.01V
Detection Power Range: 0~3.2mW/cm2
Rising Time: 3ms
