UV Photodiode
-
Price
Price on request ≥1piece
-
Model Number
EOPD-265-0-0.5-CC -
Data Sheet
-
Package
Original packaging -
Specs
EOPD-265-0-0.5-CC -
Quantity
- +Send Inquiry
Find Similar Products
-
Broadband SiC Based UV Photodiode A = 0.06 mm2
Model Number：SG01S-18
MOQ：1
-
Broadband SiC Based UV Photodiode A = 0.06 mm2
Model Number：SG01S-18S
MOQ：1
-
Reflective UV Sensor
Model Number：GenUV-L365P-MM
MOQ：1
-
Reflective UV Sensor
Model Number：GUVF-P12MD
MOQ：1
-
UV-A Sensor
Model Number：GUVA-S12SD
MOQ：1
-
UV-A Sensor
Model Number：GUVA-T11GD
MOQ：1
Product Description
| Radiation | Type | Technology | Case |
| ultraviolet | UV-glass | SiC | TO-52 |
EOPD-265-0-0.5-CC UV Photodiode Description:

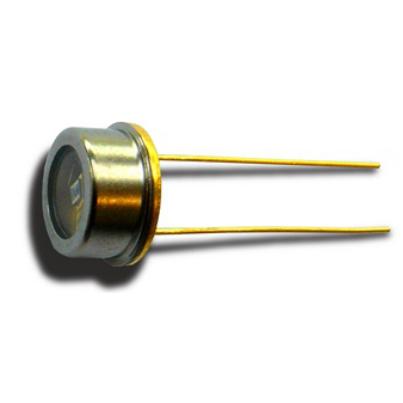

Low cost SiC photodiode with high spectral sensitivity in the UV range (205 nm - 355 nm), mounted in hermetically sealed TO-52 package with UV-glass window, RoHS and WEE compliant
EOPD-265-0-0.5-CC UV Photodiode Applications:
♦ Universal measurements in the UV range
♦ Sterilization lamp monitoring
♦ Flame monitoring
EOPD-265-0-0.5-CC UV Photodiode Maximum Ratings
Tamb = 25°C, unless otherwise specified
| Parameter | Symbol | Value | Unit |
| Chip size | A | 0.55 x 0.55 | mm2 |
| Active area | A | 0.25 | mm2 |
| Reverse voltage | VR | 10 | V |
| Operating temperature range | Tamb | -40~125 | ℃ |
| Storage temperature range | Tstg | -40~125 | ℃ |
| Soldering temperature, 3 s | Tsol | 260 | ℃ |
EOPD-265-0-0.5-CC UV Photodiode Optical and Electrical Characteristics
Tamb = 25°C, unless otherwise specified
| Parameter | Test conditions | Symbol | Min | Typ | Max | Unit |
| Dark current | VR=1V | ID |
|
25 |
|
fA |
| Peak sensitivity wavelength | VR=0V | λp |
|
265 |
|
nm |
| Responsivity at λP | VR=0V | Sλ |
|
0.18 |
|
A/W |
| Responsivity at λ=254 nm | VR=0V | Sλ |
|
0.16 |
|
A/W |
| Sensitivity range at 0.1 Smax | VR=0V | λmin , λmax | 205 |
|
355 | nm |
| Junction capacitance | VR=0V | CJ |
|
75 |
|
pF |
| Acceptance angle | VR=0V | ϕ |
|
±40 |
|
deg |
