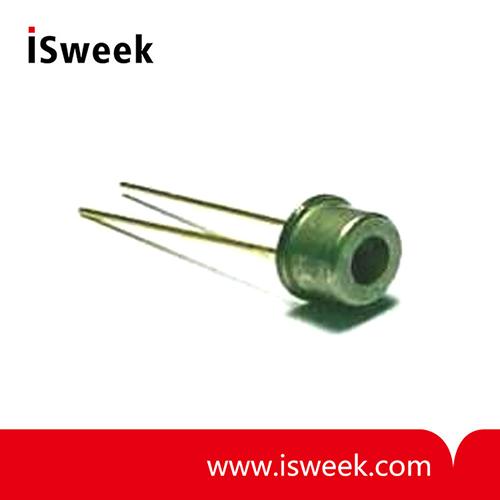

UV-C Sensor
-
Price
Price on request ≥1piece
-
Model Number
GUVC-T10GD -
Data Sheet
-
Package
Original packaging -
Specs
GUVC-T10GD -
Quantity
- +Send Inquiry
Find Similar Products
-
Broadband SiC Based UV Photodiode A = 0.06 mm2
Model Number：SG01S-18
MOQ：1
-
Broadband SiC Based UV Photodiode A = 0.06 mm2
Model Number：SG01S-18S
MOQ：1
-
Reflective UV Sensor
Model Number：GenUV-L365P-MM
MOQ：1
-
Reflective UV Sensor
Model Number：GUVF-P12MD
MOQ：1
-
UV-A Sensor
Model Number：GUVA-S12SD
MOQ：1
-
UV-A Sensor
Model Number：GUVA-T11GD
MOQ：1
Product Description
1. GUVC-T10GD UV Sensor Features
Aluminium Gallium Nitride Based Material
Schottky-type Photodiode
Photovoltaic Mode Operation
Good Solar Blindness
2. GUVC-T10GD UV Sensor Applications
Pure UV-C Monitoring
Sterilization Lamp Monitoring

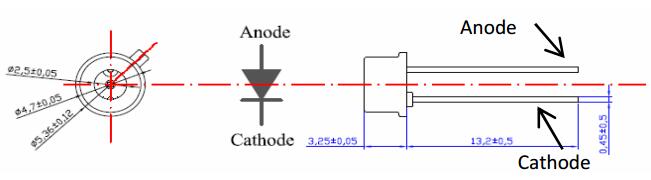

3. GUVC-T10GD UV Sensor Outline Diagrams and Dimensions
4. GUVC-T10GD UV Sensor Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 3V
Forward Current: 1mA
Optical Source Power Range: 0.1µ~100m W/cm2
Soldering Temperature: 260℃

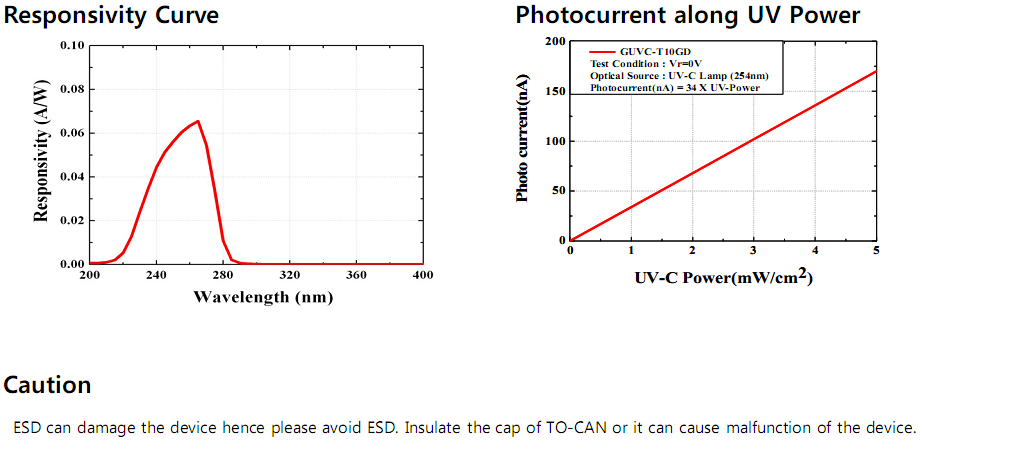

5. GUVC-T10GD UV Sensor Characteristics (at 25℃)
Dark Current(Max.): 1nA
Photo Current(Typ.): 34nA
Temperature Coefficient: -0.07%/℃
Responsivity: 0.06A/W
Spectral Detection Range: 220~280nm
Active area: 0.076mm2
