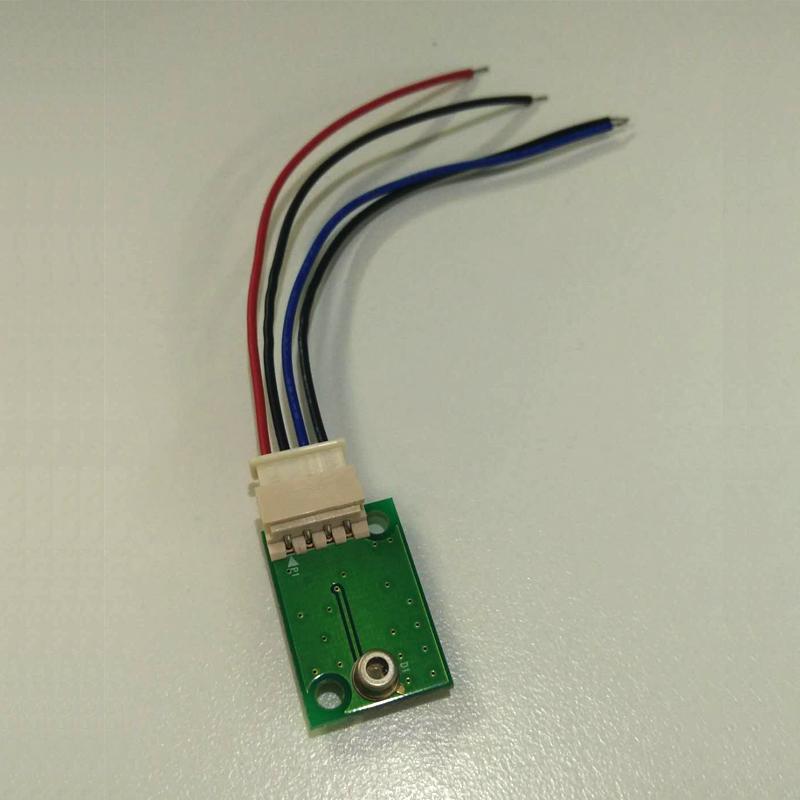

UV-B Sensor
-
Price
Price on request ≥1piece
-
Model Number
GUVB-T11GD-L -
Data Sheet
-
Package
Original packaging -
Specs
GUVB-T11GD-L -
Quantity
- +Send Inquiry
Find Similar Products
-
Broadband SiC Based UV Photodiode A = 0.06 mm2
Model Number：SG01S-18
MOQ：1
-
Broadband SiC Based UV Photodiode A = 0.06 mm2
Model Number：SG01S-18S
MOQ：1
-
Reflective UV Sensor
Model Number：GenUV-L365P-MM
MOQ：1
-
Reflective UV Sensor
Model Number：GUVF-P12MD
MOQ：1
-
UV-A Sensor
Model Number：GUVA-S12SD
MOQ：1
-
UV-A Sensor
Model Number：GUVA-T11GD
MOQ：1
Product Description
1. UV Sensor GUVB-T11GD-L Features
Aluminium Gallium Nitride Based Material
Schottky-type Photodiode
Photovoltaic Mode Operation
Good Visible Blindness
High Responsivity & Low Dark Current
2. UV Sensor GUVB-T11GD-L Applications
UV-B Lamp Monitoring
UV-B LED Monitoring
3. UV Sensor GUVB-T11GD-L Outline Diagrams and Dimensions
4. UV Sensor GUVB-T11GD-L Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 3V
Forward Current: 1mA
Optical Source Power Range: 0.01µ~100m W/cm2
Soldering Temperature: 260℃
5. UV Sensor GUVB-T11GD-L Characteristics (at 25℃)
Dark Current(Max.): 20nA
Photo Current(Typ.): 1.5µA
Temperature Coefficient: 0.1%/℃
Responsivity: 0.13A/W
Spectral Detection Range: 220~320nm
Active area: 1.536mm2
