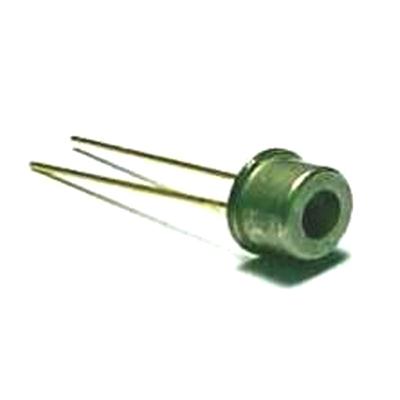

UV-A Sensor
-
Price
Price on request ≥1piece
-
Model Number
GUVV-T10GD -
Data Sheet
-
Package
Original packaging -
Specs
GUVV-T10GD -
Quantity
- +Send Inquiry
Find Similar Products
-
Broadband SiC Based UV Photodiode A = 0.06 mm2
Model Number：SG01S-18
MOQ：1
-
Broadband SiC Based UV Photodiode A = 0.06 mm2
Model Number：SG01S-18S
MOQ：1
-
Reflective UV Sensor
Model Number：GenUV-L365P-MM
MOQ：1
-
Reflective UV Sensor
Model Number：GUVF-P12MD
MOQ：1
-
UV-A Sensor
Model Number：GUVA-S12SD
MOQ：1
-
UV-A Sensor
Model Number：GUVA-T11GD
MOQ：1
Product Description
1. GUVV-T10GD UV Sensor Features
Indium Gallium Nitride Based Material
Schottky-type Photodiode
Photovoltaic Mode Operation
High Responsivity & Low Dark Current
2. GUVV-T10GD UV Sensor Applications
Full UV Band Monitoring
UV-A Lamp Monitoring
Sterilization Lamp Monitoring

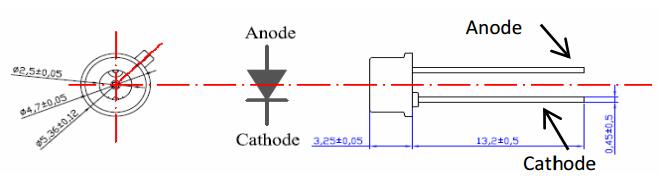

3. GUVV-T10GD UV Sensor Outline Diagrams and Dimensions
4. GUVV-T10GD UV Sensor Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 2V
Forward Current: 1mA
Optical Source Power Range: 0.1µ~100m W/cm2
Soldering Temperature: 260℃
5. UV Sensor GUVV-T10GD Characteristics (at 25℃)
Dark Current(Max.): 1nA
Photo Current(Typ.): 163nA
Temperature Coefficient: 0.1%/℃

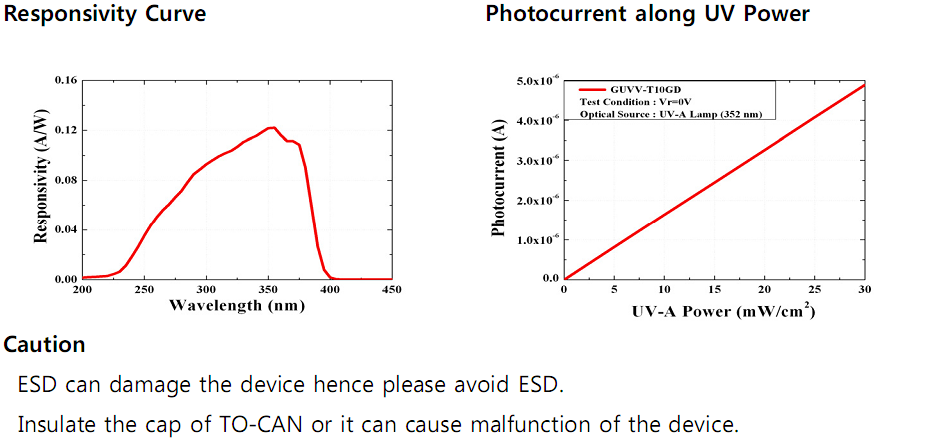

Responsivity: 0.12A/W
Spectral Detection Range: 230~395nm
Active area: 0.076mm2
