Product Description

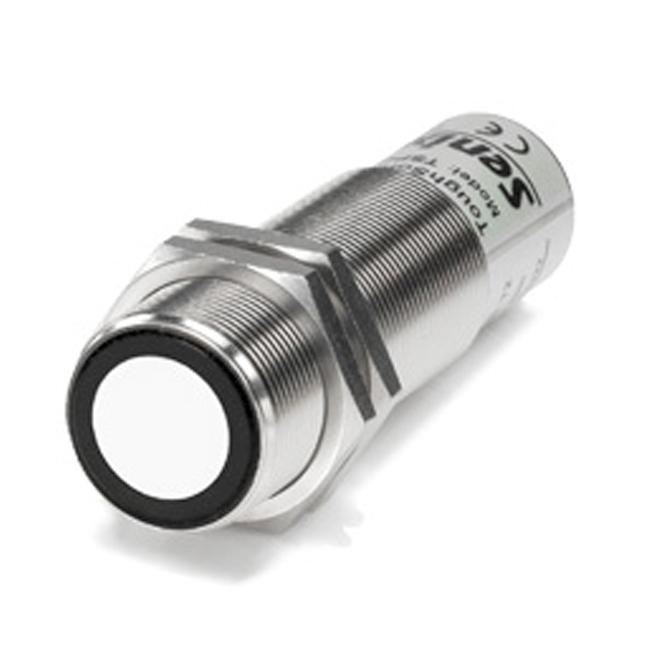

ToughSonic 14 Level & Distance Sensor
PC or Button Setup, Waterproof, Two Selectable Outputs


The ToughSonic 14 ultrasonic sensor has a maximum range of 14 feet (4.3 meters).  Like all ToughSonic sensors, it’s built for durability and ease of use in tough industrial environments. It’s fully submersible, corrosion resistant, shock resistant ultrasonic sensors are housed in 316 stainless steeland all around tough. It’s also fully configurable with  our SenixVIEW software. ToughSonic 14s include our famous “Teach” feature for push button configuration. This compact sensor is used around the world on remote liquid level systems, heavy equipment, factory automation applications and more. This is our most popular sensor.

For longer range applications or for chemically resistant sensors, please see our full line of ToughSonic and ToughSonic CHEM sensors.


Non-Contact Ultrasonic Distance & Level Measurement

ToughSonic ultrasonic sensors are built Tough with:
• 1.88 inch (48 millimeter) type 316 stainless steel housing.
• Sealed epoxy potting for wet and dirty applications.
• Ruggedized piezoelectric ultrasonic transducer, potted in place.
• Hardened ToughSonic internal electronics.

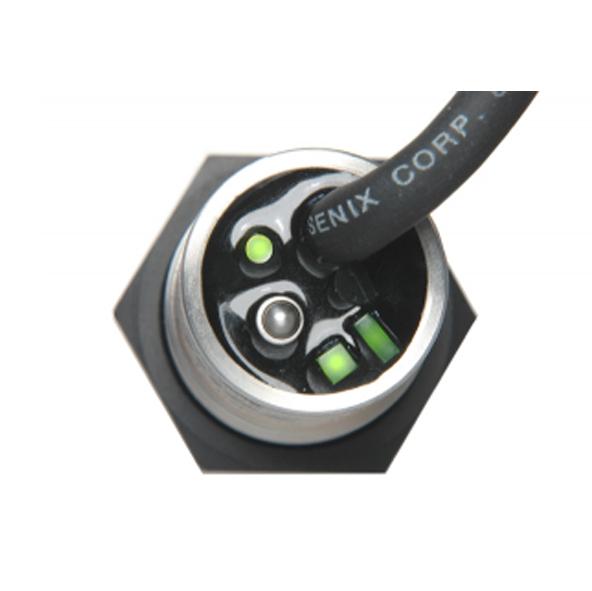

• UV resistant, potted-in, 9-wire cable.
• Short and overload protected input / output.

ToughSonic ultrasonic sensors are built Smart with:
• SenixVIEW configuration and analysis software controls more than 60 performance parameters and dozens of viewing, analysis and maintenance options.
• Multi-sensor network capable.
• Up to six simultaneous, industry standard outputs.
TSPC-30S1 Series Ultrasonic Level & Distance Sensor Specifications

Optimum Range

 10 ft. (3 m)

Max Range

 14 feet (4.3 m)

Deadband

 Typ. < 4 in. (100 mm)

Adjustment

 Button "teach" or SenixVIEW

Case Material

 316 stainless steel

Configuration

 Stored in non-volatile memory

Temperature

 -40 to 158 ℉ (-40 to 70℃)

Outputs

 Two selectable, plus serial data

Humidity

 0 to 100% operating

Transducer

 Ruggedized piezoelectric

Compensation

 Temperature compensated

Protection

 NEMA-4X, NEMA-6P, IP68

Resolution

 Digital:0.0034 in. (0.086 mm); Analog:4099 steps (0-10 VDC), 3279 steps (4-20 mA)

Repeatability

 Nominal 0.2% of range @ constant temp. Affected by target, distance, environment

Update Rate

 20 Hz (50 ms), SenixVIEW adjustable; also affected by SenixVIEW filter selections

Output Selection

 Voltage & 4-20 mA current loop (defaults), switches, or a combination; see C ONNECTIONS below

Voltage Output

 0-10, 0-5 VDC or PC customized, 10 mA max; also push-button teachable endpoints

Current Loop

 4-20 mA or PC customized, current sourcing, max. loop 450Ω, teachable endpoints

Sinking Switch

 150 mA max. @ 40 VDC max., teachable set point & polarity, fault indication

Sourcing Switch

 150 mA max. @ input voltage, teachable set point & polarity, fault indication

RS-232, RS-485

 Modbus protocol, 9600 to 115200 baud, 8 data bits, 1 stop, no parity

SYNC feature

 Permits up to 32 sensors to operate in close proximity without interaction

Target Requirements

Objects

 Detects flat or curved objects. Surface must reflect ultrasound to sensor

Max. Distance

 Affected by size, shape, orientation of target (sound level reflected back to sensor), environment

 Restrict use to Optimum Range when using over a wide range of environmental conditions

Orientation

 Flat surfaces should be oriented perpendicular to sensor output beam

Optical

 Unaffected by target color, light, transparency or other optical characteristics


TSPC-30S1 Series Ultrasonic Level & Distance Sensor Connections

Cable Connection

 Wire

 Description

Power

 Brown

 10-30 VDC @ 60 mA maximum; Typical:45 mA @ 24 VDC (**)

Ground

 Blue

 Power and interface common

Voltage Output

 White *

 0-10 VDC, 0-5 VDC or custom end values between 0 and 10 VDC

Current Loop Output

 Black *

 4-20 mA or user adjusted end values between 4 and 20 mA

Switch #1 Output

 Black *

 Sinking ("NPN") or Sourcing ("PNP"), user selected

Switch #2 Output

 White *

 Sinking ("NPN") or Sourcing ("PNP"), user selected

RS-232 out / RS-485-

 Gray

 Serial data connection (depends on model - see part numbers)

RS-232 in / RS-485+

 Yellow

 Serial data connection (depends on model - see part numbers)

(*) Outputs on the black and white wires are SenixVIEW selected. The black wire options are 4-20 mA current loop or switch. White wire options are 0-10 VDC or switch. Switches can be sourcing or sinking. Max current loop resistance is derated below 15 VDC input voltage.
(**) At default update rate. Output currents not included. Sensitivity reduced below 15 VDC input voltage.

TSPC-30S1 Series Ultrasonic Level & Distance Sensor Part Numbers

Model

 Number Description

TSPC-30S1-232

 Serial RS-232 interface (PC COM port compatible)

TSPC-30S1-485

 Serial RS-485 interface (allows addressable multi-sensor networks)
