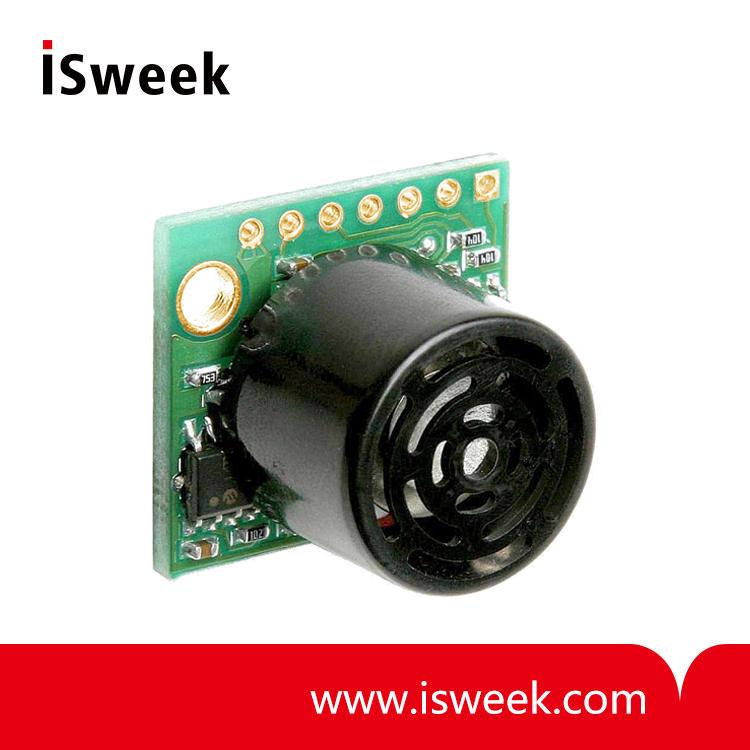

LV-MaxSonar-EZ1 High Performance Ultrasonic Rangefinder

MB1010 LV-MaxSonar-EZ1
High Performance Ultrasonic Rangefinder

MB1010 LV-MaxSonar-EZ1 Ultrasonic Rangefinder Product Description

The LV‑MaxSonar‑EZ1 is a great choice for use where sensitivity is needed along with side object rejection.
The LV-MaxSonar-EZ1 is our most popular indoor ultrasonic sensor and is a great low-cost general-purpose sensor for a customer not sure of which LV-MaxSonar-EZ sensor to use.

MB1010 LV-MaxSonar-EZ1 Ultrasonic Rangefinder Product Specifications
• Resolution of 1 inch
• 20Hz reading rate
• 42kHz Ultrasonic sensor measures distance to objects
• RoHS Compliant
• Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
• Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
• Maximum Range of 254 inches (645 cm)
• Operates from 2.5-5.5V
• Low 2.0mA average current requirement
• Small, light weight module
• Designed for easy integration into your project or product
• Widest beam of the LV-MaxSonar-EZ sensors
• Our most popular indoor ultrasonic rangefinder
• Our low cost, all-around sensor that is excellent for many projects
• Best beam and sensitivity balance for the LV-MaxSonar-EZ sensors

MB1010 LV-MaxSonar-EZ1 Ultrasonic Rangefinder Features and Benefits
• Most popular ultrasonic sensor
• Low power consumption
• Easy to use interface
• Can detect people to 8 feet
• Great balance between sensitivity and object rejection
• Can be powered by many different types of power sources

MB1010 LV-MaxSonar-EZ1 Ultrasonic Rangefinder Applications and Uses
• Great for people detection
• Security
• Motion detection
• Used with battery power
• Autonomous navigation
• Educational and hobby robotics
• Collision avoidance

MB1010 LV-MaxSonar-EZ1 Ultrasonic Rangefinder Part Numbers
All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.

The following table displays all of the active and valid part numbers for this product.
