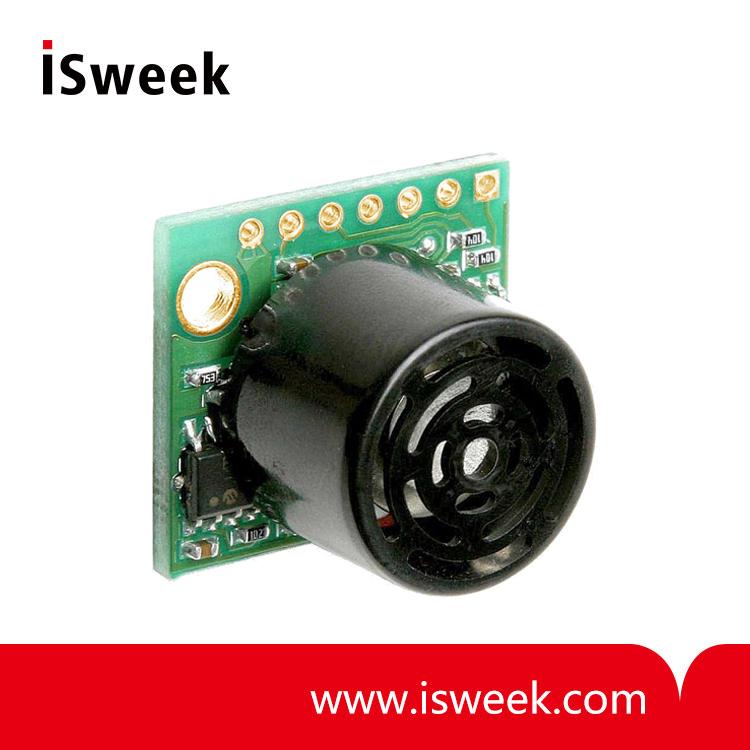

LV-MaxSonar-EZ2 High Performance Ultrasonic Rangefinder

MB1020 LV-MaxSonar-EZ2
High Performance Ultrasonic Rangefinder

MB1020 LV-MaxSonar-EZ2 Ultrasonic Rangefinder Product Description
The LV-MaxSonar-EZ2 is a good compromise between sensitivity and side object rejection. The LV-MaxSonar-EZ2 is an excellent choice for applications that require slightly less side object detection and sensitivity than the MB1010 LV-MaxSonar-EZ1.

MB1020 LV-MaxSonar-EZ2 Ultrasonic Rangefinder Product Specifications
• Resolution of 1 inch
• 20Hz reading rate
• 42kHz Ultrasonic sensor measures distance to objects
• RoHS Compliant
• Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
• Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
• Maximum Range of 254 inches (645 cm)
• Operates from 2.5-5.5V
• Low 2.0mA average current requirement
• Small, light weight module
• Designed for easy integration into your project or product
• Narrower beam width than the LV-MaxSonar-EZ1

MB1020 LV-MaxSonar-EZ2 Ultrasonic Rangefinder Features and Benefits
• Great for applications where the MB1010 is too sensitive.
• Excellent side object rejection
• Can be powered by many different types of power sources
• Can detect people up to approximately 6 feet

MB1020 LV-MaxSonar-EZ2 Ultrasonic Rangefinder Applications and Uses
• Landing flying objects
• Used with battery power
• Autonomous navigation
• Educational and hobby robotics
• Large object detection

MB1020 LV-MaxSonar-EZ2 Ultrasonic Rangefinder Part Numbers

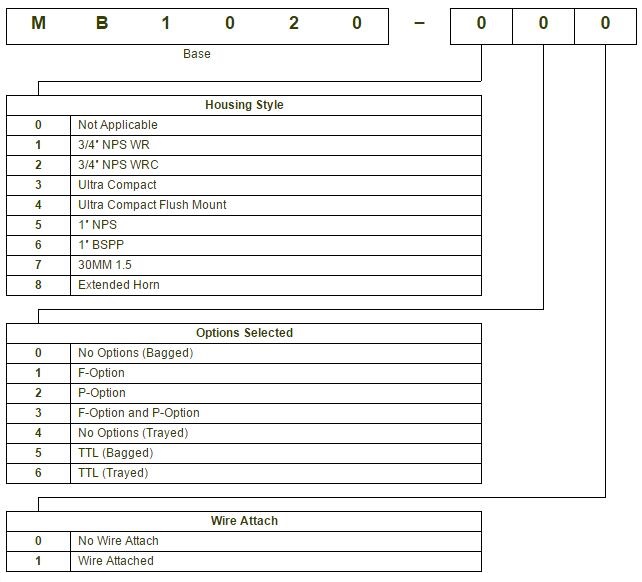

All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.

The following table displays all of the active and valid part numbers for this product.
