Thermal Conductivity Gauge
-
Price
Price on request ≥1piece
-
Model Number
XEN-3880-RW -
Data Sheet
-
Package
Original packaging -
Specs
XEN-3880-RW -
Quantity
- +Send Inquiry
Find Similar Products
-
Ultra Low Power Digital Output NDIR CO2 Gas Sensor
Model Number：CozIR-A
MOQ：1
-
Ultra Low Power Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：COZIR-W/ExplorIR-W
MOQ：1
-
Low Cost HVAC Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：MisIR
MOQ：1
-
Probe Type NDIR CO2 Sensor
Model Number：COZIR-Probe
MOQ：1
-
High Speed Carbon Dioxide Sensor NDIR CO2 Sensor 20Hz 0-100%
Model Number：SprintIR-WF
MOQ：1
-
Infrared Gas Sensor for Oil Industry Methane Sensor
Model Number：PrimePell
MOQ：1
Product Description

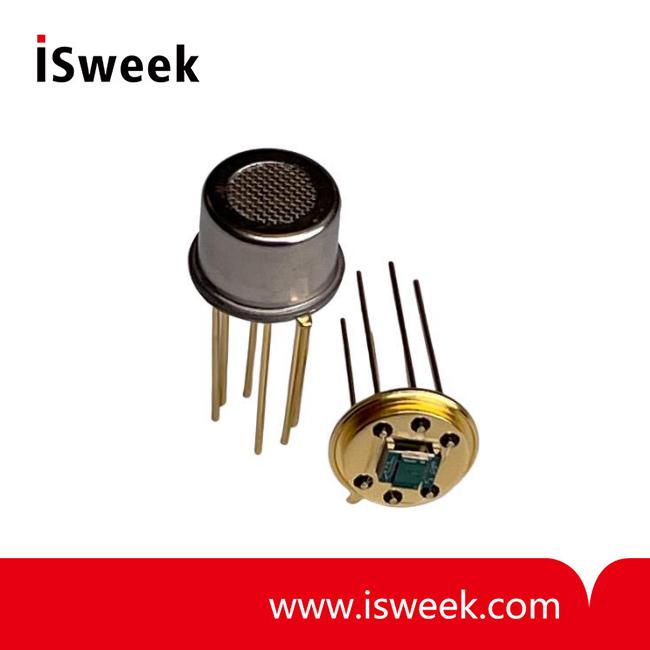

The XEN-3880-RW thermal conductivity gauge measures thermal conductivity of the surrounding gas. Operating on the principle that gases differ in their thermal conductivity, it can be used to measure gas concentration in binary mixtures or quasi-binary mixtures where component gases have different thermal conductivity. It can also be used to measure pressure in vacuum systems.
The sensor chip consists of a silicon frame with a silicon-nitride membrane. In the center is a heater, with a thermopile measuring its temperature. The chip measures the thermal conductance between the ambient and the center of the membrane.
A silicon cover (Roof) on top of the membrane and a welded cap with filter (W) suppress flow sensitivity.
Features
• Long-term stable analysis of gases in binary and quasi-binary mixtures
• High sensitivity and resolution
• Operating temperature: -250℃ to 150℃
• Humidity: 0 to 95% RH, non-condensing
• Negligible flow sensitivity
Some Applications
• Hydrogen, helium and natural gas measurement
• Testing of hydrogen systems with helium
• Vacuum measurement in packages & vacuum systems
• Gas concentration measurement
Technical Specification
Ambient temperature 22℃ and 1 V power supply
|
Dimensions |
|
|
size naked die (mm3) |
2.50 x 3.33 x 0.3 |
|
Size TO-5 header (mm2) |
9 Ф x 6 |
|
Length pins (mm) |
13.5 |
|
weight on TO-5 (g) |
0.71 |
|
weight on TO-5 + cap + filter (g) |
1.05 |
|
Output |
|
|
in vacuum at < 1 mPa (V/W) |
130 |
|
in air at 100 kPa (V/W) |
30 |
|
in air at 10 MPa (V/W) |
26 |
|
in helium at 100 kPa (V/W) |
7 |
|
in helium at 10 MPa (V/W) |
6.9 |
|
Time constant |
|
|
in air (ms) |
9 |
|
in vacuum (ms) |
36 |
|
Stability |
|
|
short term, 1 day (ppm) |
1 |
|
long term, 1 year (ppm) |
300 |
|
Thermal resistance |
|
|
membrane (kK/W) |
100 |
|
membrane + air (kK/W) |
23 |
|
Maximum heating voltage |
|
|
in air (V) |
2.5 |
|
in vacuum (V) |
1 |
