Product Description

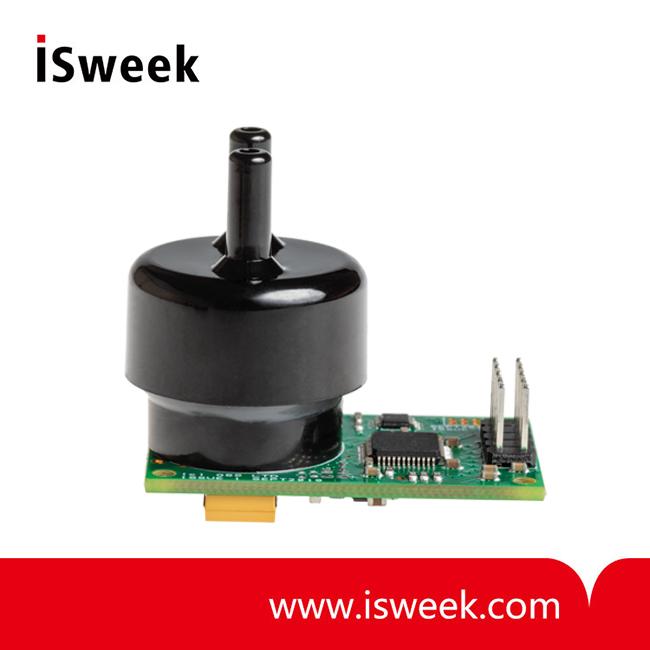

SprintIR-WF High Speed Carbon Dioxide Sensor NDIR CO2 Sensor Summary
The SprintIR-W fast response CO2 sensor is a high speed sensor, ideally suited for applications which require capture of rapidly changing CO2 concentrations. Facilitating a measurement rate of 20 readings per second, SprintIR-W fast response CO2 sensor is the fastest NDIR CO2 sensor available in the world. It is available with options to support either flow-through or diffusion structures.

The performance ability of the SprintIR-W CO2 Sensor is enabled by SmartIR technology, which uses solid state sensing elements to combine low power with high speed and ruggedness in these NDIR sensors. This makes them ideal for use in industrial, medical, aerospace, and other harsh environments such as diving – including handheld and battery powered systems.

We can supply an optional USB to TTL cable which gives users a fast, simple method to attach their SprintIR-W fast response CO2 sensor to the PC and directly view measurements.

SprintIR-WF Carbon Dioxide Sensor NDIR CO2 Sensor Features
• Low power / energy consumption - 35mW
• Measures up to 100% CO 2 concentration
• High speed sensing; 20 measurements per second (20Hz)
• Solid-state; no moving parts, no heated filaments
• Digital (UART) output
• Optional (factory fit) flow through adapter available


SprintIR-WF Carbon Dioxide Sensor NDIR CO2 Sensor Benefits
• Very fast response
• Ideal for very low power and battery applications
• Suitable for wireless, portable, wearable and self-powered systems
• Fits neatly inside compact instruments


SprintIR-WF Carbon Dioxide Sensor NDIR CO2 Sensor Specifications

CO2 Measurement

Sensing Method

Non-dispersive infrared (NDIR) absorption

Patented Gold-plated optics

Patented Solid-state source and detector

Sample Method

Diffusion(Standard) / Flow through (with flow-through adapter)

Measurement Range

0-5%, 0-20%, 0-100%

Accuracy

±70 ppm +/- 5% of reading (100% range ±300ppm ±5% of reading)

Measurement Noise

<10% of reading with no digital filtering

Non Linearity

< 1% of FS

Pressure Dependence

0.15% of reading per mbar in normal atmospheric conditions

Operating Pressure Range

500mbar - 10bar
500mbar to 2 bar with flow through adaptor

General Performance

Warm-up Time

< 1 minute

Operating Conditions

0°C to 50°C (Standard)

-25°C to 55°C (Extended range)

0 to 95%, RH non-condensing

Recommended Storage

-30°C to +70°C

Electrical/ Mechanical

Power Input

3.2 to 5V. (3.3V recommended)

Peak current 100mA

Average Current <15mA

Power Consumption

35 mW

Output

3.3V TTL level UART
