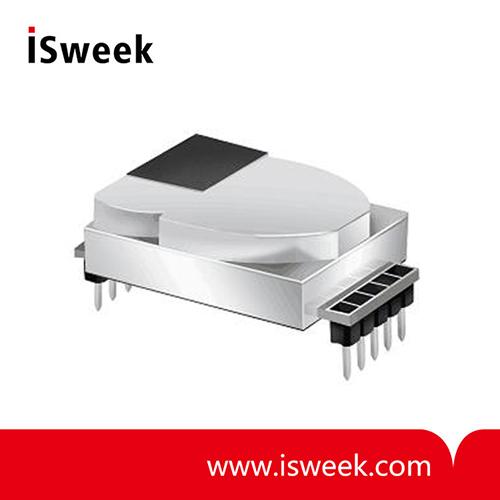

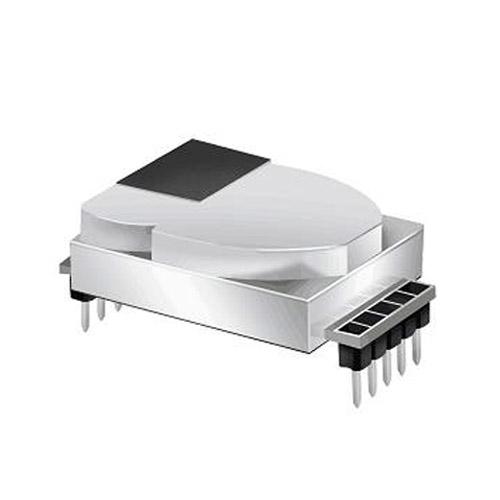

Single Beam Infrared Carbon Dioxide Sensor NDIR CO2 Sensor Module
-
Price
Price on request ≥1piece
-
Model Number
CM1106 -
Data Sheet
-
Package
Original packaging -
Specs
CM1106 -
Quantity
- +Send Inquiry
Find Similar Products
-
Ultra Low Power Digital Output NDIR CO2 Gas Sensor
Model Number：CozIR-A
MOQ：1
-
Ultra Low Power Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：COZIR-W/ExplorIR-W
MOQ：1
-
Oxygen Gas Sensor (O2 Sensor)
Model Number：O2-M2
MOQ：1
-
Low Cost HVAC Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：MisIR
MOQ：1
-
Probe Type NDIR CO2 Sensor
Model Number：COZIR-Probe
MOQ：1
-
High Speed Carbon Dioxide Sensor NDIR CO2 Sensor 20Hz 0-100%
Model Number：SprintIR-WF
MOQ：1
Product Description
CM1106 Carbon Dioxide Sensor NDIR CO2 Sensor Module Introduction
Single Beam(single light source, single wavelength) NDIR CM1106 (Miniature size) can be used to detect CO2 concentration of indoor air by adopting advanced non-dispersive infrared technology(NDIR). It is widely used in IAQ monitor, air conditioner with purifying function, air purifier, ventilation system, automotive and other consumer electronic products etc.
CM1106 Carbon Dioxide Sensor NDIR CO2 Sensor Module Features
▪ Advanced non-dispersive infrared technology(NDIR) with independent intellectual property
▪ High accuracy: temperature calibration within whole measurement range
▪ High stability: advanced auto-calibration at background
▪ Small size and compact structure, easy to install
CM1106 Carbon Dioxide Sensor NDIR CO2 Sensor Module Application
▪ IAQ monitor
▪ Air conditioner with purifying function
▪ Air purifier
▪ Ventilation system
▪ Automotive
CM1106 Carbon Dioxide Sensor NDIR CO2 Sensor Module Specification
▪ Measurement range: 0-2000ppm (extending to 5000ppm, 10000ppm)
▪ Accuracy: auto-calibration within temperature and concentration range
▪ Working temperature: -5℃~50℃
▪ Storage temperature : -20℃~60℃
▪ Working humidity: 0-95%RH (non-condensing)
▪ Signal output: UART-TTL, PWM, IIC
▪ Dimension: 33*19.7*8.9mm
▪ Maintenance: Auto-calibration
Single Beam(single light source, single wavelength) NDIR CM1106 (Miniature size) can be used to detect CO2 concentration of indoor air by adopting advanced non-dispersive infrared technology(NDIR). It is widely used in IAQ monitor, air conditioner with purifying function, air purifier, ventilation system, automotive and other consumer electronic products etc.
CM1106 Carbon Dioxide Sensor NDIR CO2 Sensor Module Features
▪ Advanced non-dispersive infrared technology(NDIR) with independent intellectual property
▪ High accuracy: temperature calibration within whole measurement range
▪ High stability: advanced auto-calibration at background
▪ Small size and compact structure, easy to install
CM1106 Carbon Dioxide Sensor NDIR CO2 Sensor Module Application
▪ IAQ monitor
▪ Air conditioner with purifying function
▪ Air purifier
▪ Ventilation system
▪ Automotive
CM1106 Carbon Dioxide Sensor NDIR CO2 Sensor Module Specification
▪ Measurement range: 0-2000ppm (extending to 5000ppm, 10000ppm)
▪ Accuracy: auto-calibration within temperature and concentration range
▪ Working temperature: -5℃~50℃
▪ Storage temperature : -20℃~60℃
▪ Working humidity: 0-95%RH (non-condensing)
▪ Signal output: UART-TTL, PWM, IIC
▪ Dimension: 33*19.7*8.9mm
▪ Maintenance: Auto-calibration
