Product Description

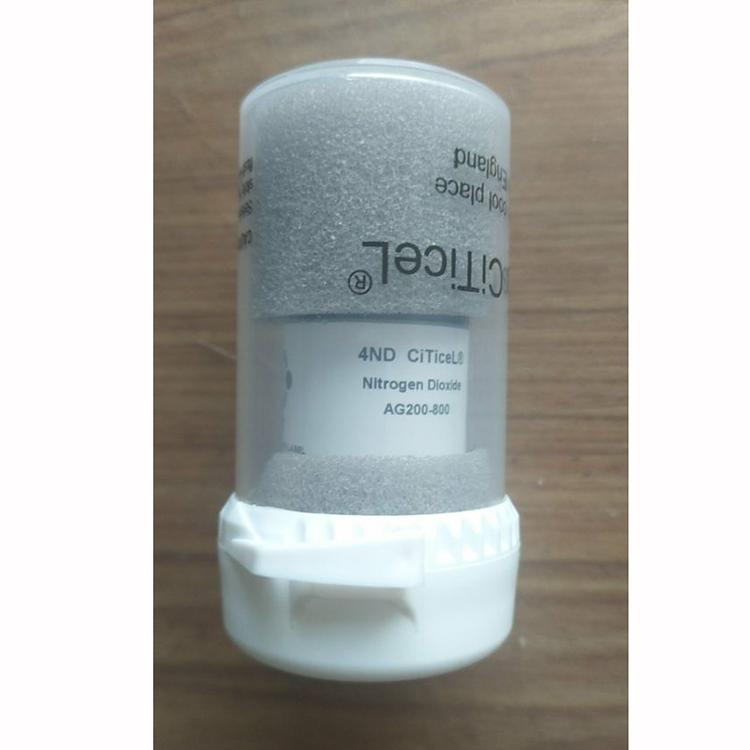

4ND CiTiceL Nitrogen Dioxide Sensor Key Features & Benefits
• Industry leading reliability
• Improved performance variability

4ND CiTiceL Nitrogen Dioxide Sensor Application
Industrial Safety: Sensors for portable gas detectors used in Industrial Hygiene and Confined Space Entry.

4ND CiTiceL Nitrogen Dioxide Sensor Performance Characteristics
Nominal Range
 0-20 ppm
Maximum Overload
 150 ppm
Expected Operating Life
 Two years in air
Output Signal
 0.6 ± 0.15 µA/ppm
Resolution
 0.1 ppm
Temperature Range
 -20°C to +50°C
Pressure Range
 Atmospheric ± 10%
T90 Response Time
 <25 seconds
Relative Humidity Range
 15 to 90% non-condensing
Typical Baseline Range
(pure air)
 -0.2 to +0.2 ppm equivalent
Maximum Zero Shift
(+20°C to +40°C)
 0.2 ppm equivalent
Long Term Output Drift
 <2% signal loss/month
Recommended Load Resistor
 33 Ω
Bias Voltage
 Not required
Repeatability
 <2% of signal
Output Linearity
 Linear
N.B.  All performance data is based on conditions at 20°C, 50%RH, and 1013 mBar

4ND CiTiceL Nitrogen Dioxide Sensor Physical Characteristics
Weight
 5 g (approx.)
Position Sensitivity
 None
Storage Life
 Six months in CTL container
Recommended Storage Temperature
 0-20°C
Warranty Period
 12 months from date of despatch
