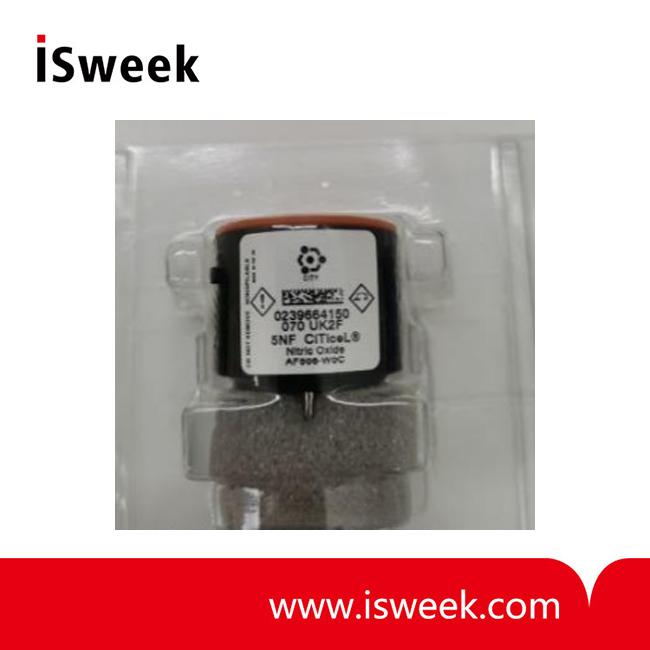

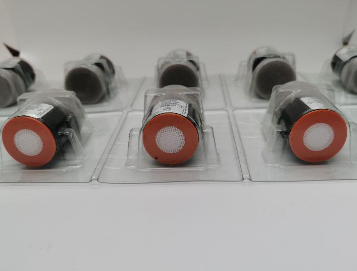

Nitric Oxide (NO) Gas Sensor
-
Price
Price on request ≥1piece
-
Model Number
5NF -
Data Sheet
-
Package
Original packaging -
Specs
5NF -
Quantity
- +Send Inquiry
Find Similar Products
-
Ultra Low Power Digital Output NDIR CO2 Gas Sensor
Model Number：CozIR-A
MOQ：1
-
Ultra Low Power Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：COZIR-W/ExplorIR-W
MOQ：1
-
Low Cost HVAC Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：MisIR
MOQ：1
-
Probe Type NDIR CO2 Sensor
Model Number：COZIR-Probe
MOQ：1
-
High Speed Carbon Dioxide Sensor NDIR CO2 Sensor 20Hz 0-100%
Model Number：SprintIR-WF
MOQ：1
-
Infrared Gas Sensor for Oil Industry Methane Sensor
Model Number：PrimePell
MOQ：1
Product Description
5NF Nitric Oxide Gas Sensor Key Features and Benefits：
• Incorporates scavenging electrode for removal of by-products
• Electrical connection via PCB pins or solder tags
5NF Nitric Oxide Gas Sensor Technical Specifications：
MEASUREMENT
Operating Principle
4-electrode electrochemical
Measurement Range
0-1000 ppm NO
Maximum Overload
5000 ppm NO
Filter
To remove effect of SO2
Filter Life
25,000 ppm hours
(1000 ppm SO2 at 200 ml/min)
Sensitivity*
0.10 ± 0.02 µA/ppm
Response Time (T90)*
< 30 seconds
Baseline Offset (clean air)*
0 to 12 ppm equivalent
Maximum Zero Shift
(+20°C to +40°C)
30 ppm equiv.
Resolution
When using recommended electronics
1 ppm
Repeatability
2% of signal
Linearity
Linear
ELECTRICAL
Recommended Load Resistor
10 Ω
Bias Voltage
+300 mV
MECHANICAL
Weight
13 g nominal
Orientation
Any
ENVIRONMENTAL
Operating Temperature Range
-20°C to +40°C See note 1
Recommended Storage Temp
0°C to 20°C
Operating Pressure Range
Atmospheric ± 10%
Pressure Coefficient
0.01% signal / mbar
Operating Humidity Range
15 - 90% RH non-condensing
LIFETIME
Long Term Sensitivity Drift
< 2% signal loss/month
Expected Operating Life
Three years in air
Storage Life
6 months in CTL container
Note 1: While not being used to measure NO, the 5NF can withstand temperatures of up to 50°C.
* Specifications are valid at 20°C, 50% RH and 1013 mBar, using City Technology recommended circuitry. Performance characteristics outline the performance of sensors supplied within the first 3 months. Output signal can drift below the lower limit over time.

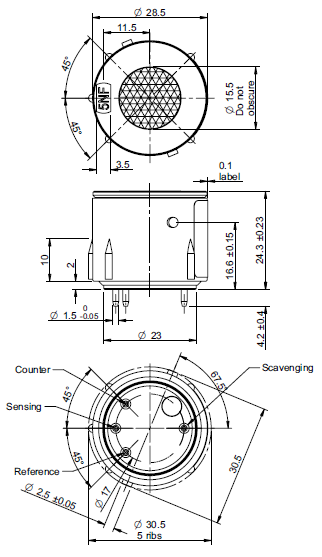

5NF Nitric Oxide Gas Sensor Product Dimensions：(without bayonet fitting)
All dimensions in mm
All tolerances ±0.15 mm unless otherwise stated
