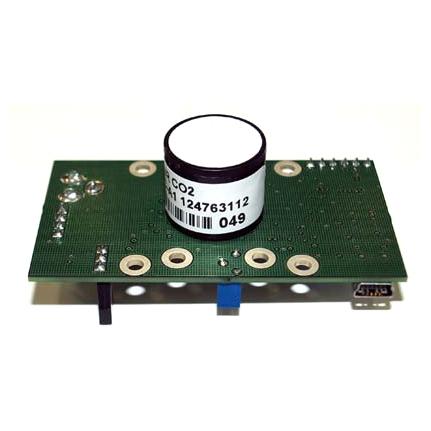

NDIR Carbon Dioxide (CO2) Transmitter Board
-
Price
Price on request ≥1piece
-
Model Number
IRC-TX -
Data Sheet
-
Package
Original packaging -
Specs
IRC-TX -
Quantity
- +Send Inquiry
Find Similar Products
-
Ultra Low Power Digital Output NDIR CO2 Gas Sensor
Model Number：CozIR-A
MOQ：1
-
Ultra Low Power Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：COZIR-W/ExplorIR-W
MOQ：1
-
Oxygen Gas Sensor (O2 Sensor)
Model Number：O2-M2
MOQ：1
-
Low Cost HVAC Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：MisIR
MOQ：1
-
Probe Type NDIR CO2 Sensor
Model Number：COZIR-Probe
MOQ：1
-
High Speed Carbon Dioxide Sensor NDIR CO2 Sensor 20Hz 0-100%
Model Number：SprintIR-WF
MOQ：1
Product Description
IRC-TX NDIR CO2 Transmitter Board Features
• Both 4-20mA and USB output
• Uses Alphasense IRC-A1 NDIR cell
• Adjustable bulb voltage to optimise long-term stability vs. resolution
IRC-TX NDIR CO2 Transmitter Board Specifications
|
Four ranges |
0-5,000ppm 0-5% vol CO2 0-20% vol CO2 0-100% vol CO2 |
| Please specify required range when ordering | |
|
|
|
|
Excellent linearity/accuracy |
±50ppm from 5,000ppm at 20℃ using generic linearisation |
|
Full sensor specification |
see IRC-A1 data sheet |
|
|
|
|
USB interface |
plugs directly into PC for simple data capture |
|
4-20mA output |
4-wire or 2-wire and separate power supply (2.1mm DC socket) |
|
|
|
|
Power options |
USB port (4-20mA output switched off) 2.1mm DC socket 7 to 40VDC Molex connector 7 to 40VDC |
