Miniature CO2 Sensor Modules
-
Price
Price on request ≥1piece
-
Model Number
T6703 -
Data Sheet
-
Package
Original packaging -
Specs
T6703 -
Quantity
- +Send Inquiry
Find Similar Products
-
Ultra Low Power Digital Output NDIR CO2 Gas Sensor
Model Number：CozIR-A
MOQ：1
-
Ultra Low Power Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：COZIR-W/ExplorIR-W
MOQ：1
-
Low Cost HVAC Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：MisIR
MOQ：1
-
Probe Type NDIR CO2 Sensor
Model Number：COZIR-Probe
MOQ：1
-
High Speed Carbon Dioxide Sensor NDIR CO2 Sensor 20Hz 0-100%
Model Number：SprintIR-WF
MOQ：1
-
Infrared Gas Sensor for Oil Industry Methane Sensor
Model Number：PrimePell
MOQ：1
Product Description

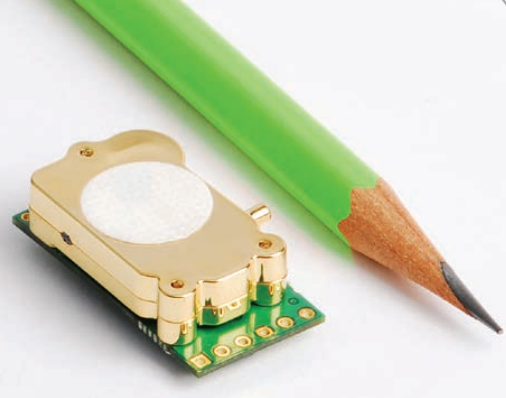

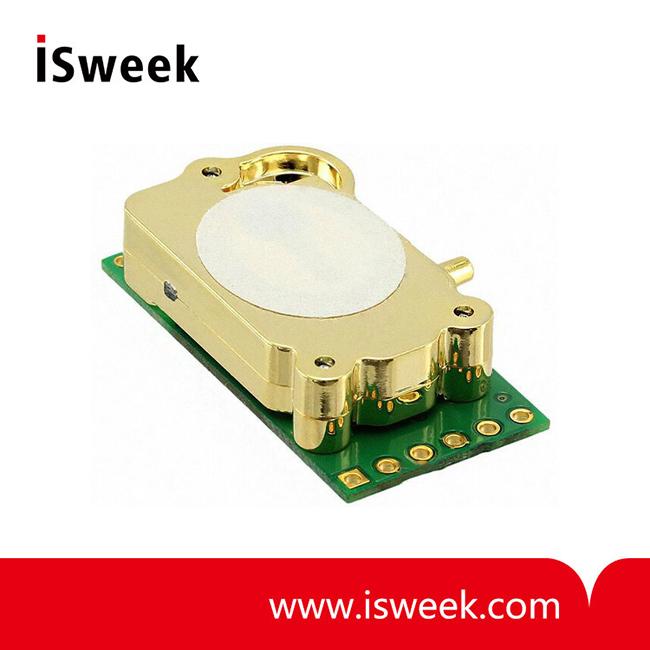

Carbon Dioxide (CO2) Sensor Modules
Telaire T6703 Series of CO2 Modules is ideal for applications where CO2 levels need to be measured to assess indoor air quality, such as residential applications. All units are factory-calibrated to measure CO2 concentration levels up to 5000 ppm.
T6703 Carbon Dioxide (CO2) Sensor Modules Applications：
▪ Air Purifiers
▪ Air Conditioning
▪ Home monitoring
▪ Desktop IAQ
▪ Consumer products
T6703 Carbon Dioxide (CO2) Sensor Modules Features：
▪ An affordable gas sensing solution for OEMs.
▪ Eliminates the need for calibration in most applications with Telaire’s patented ABC LogicTM software. Lifetime calibration warranty.
▪ A reliable sensor design based on 20 years of engineering and manufacturing expertise.
▪ Flexible CO2 sensor platform designed to interact with other microprocessor devices.
▪ Compact design for simple product integration.
T6703 Carbon Dioxide (CO2) Sensor Modules Specifications：
|
Method |
Non Dispersive Infrared (NDIR), gold plated optics,diffusion sampling (with Telaire’s Patented ABC Logic Self Calibrated Algorithm) |
|
Measurement Range |
0 to 5000 ppm |
|
Dimensions |
1.18 in X 0.61 in X 0.34 in (30 mm X 15.6 mm X 8.6 mm) |
|
Accuracy |
400-5000 ppm ± 75 ppm or 10% of reading, whichever is greater |
|
Temperature Dependence |
5 ppm per℃ or 0.5% of the reading per℃, whichever is greater |
|
Stability |
< 2% of FS over life of sensor (15 years typical) |
|
Pressure Dependence |
0.13% of reading per mm Hg |
|
Calibration Interval |
Not required |
|
Response Time |
< 3 minutes for 90% step change typical |
|
Signal Update |
Every 5 seconds |
|
Warm Up Time |
▪ < 2 minutes (operational) ▪ 10 minutes (maximum accuracy) |
|
Operating Conditions |
▪ 14°F to 140°F (-10℃ to 60℃) ▪ 0 to 95% RH, non-condensing |
|
Storage Conditions |
-22°F to 158°F (-30℃ to 70℃) |
