Product Description

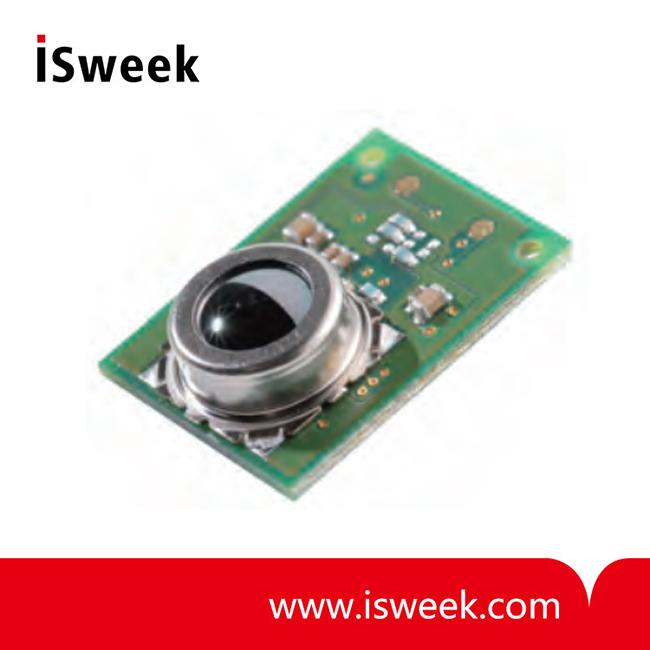

D6T-44L-06 MEMS Thermal Sensors Feature：

    MEMS Thermal (IR*1 sensor) measures the surface temperature of objects without touching them when the thermopile element absorbs the amount of radiant energy from the object.

    • Low noise：Achieving the highest level of SNR*2 in the world*3

    • Easy connection：Converts sensor signal to digital temperature output allowing easy use of microcontroller

    • Compact size：Space-saving design, well-suited for embedded applications



    *1. IR: Infrared Ray

     *2. SNR: Signal-to-Noise Ratio. Compares the level of a signal to the level of background noise

     *3. As of December 2017, according to OMRON research



D6T-44L-06 MEMS Thermal Sensors Sensing：

1.Human Detection

    D6T series sensors can detect human presence by sensing changes in human body temperature with respect to the surrounding temperature.

     Application fields：

    • Air conditioners

    • lighting systems

    • security systems

    • nursing care and monitoring equipment

    D6T series sensors can detect the slightest temperature changes that can be used in variety of applications including energy-efficient home appliances and security systems. The sensors can also be used in the application fields of HEMS (Home Energy Management System) and BEMS (Building Energy Management System).



2.Object Detection

    D6T sensors can detect objects by pinpointing the target object temperature.

     Application fields：

    • Industrial equipment

    • non-contact thermometers

    • refrigerators

    • microwave ovens

    • IH cooking heaters

    • data centers

    D6T sensors let you measure temperature without the need to physically touch the object. This allows measuring temperature where it was not possible for contact thermal sensors due to space shortage. The sensors can be used in a wide range of applications including FEMS (Factory Energy Management System).



D6T-44L-06 MEMS Thermal Sensors Ratings, Specifications, and Functions：

Ratings

Item

D6T-44L-06

Power supply voltage

4.5 to 5.5 VDC

Storage temperature range

-10 to 60°C

Operating temperature range

0 to 50°C

Storage humidity range

85% max.

Operating humidity range

20% to 85%

Characteristics

Item

Model

D6T-44L-06

View angle *1

X direction

44.2°

Y direction

45.7°

Object temperature

output accuracy *2

Accuracy 1

±1.5°C max.

Measurement conditions: Vcc = 5.0 V

(1) Tx = 25°C, Ta = 25°C

(2) Tx = 45°C, Ta = 25°C

(3) Tx = 45°C, Ta = 45°C

Current consumption

5 mA typical

Functions

Item

D6T-44L-06

Object temperature detection

range *2

5 to 50°C

Ambient temperature detection

range *2

5 to 45°C

Output specifications

Digital values that correspond to the object temperature (Tx) and reference temperature

(Ta) are output from a serial communications port.

Output form

(Object temperature detection)

Binary code (10 times the detected temperature (°C))

Output form

(Reference temperature inside the

sensor)

Binary code (10 times the detected temperature (°C))

Communications form

I2C compliant

Temperature resolution (NETD) *3

0.06°C

(Data update cycle 300 msec)

*1. Refer to Field of View Characteristics.

*2. Refer to Object Temperature Detection Range.

*3. Reference data

*4. Taken to be the average value of the central 4 pixels.
