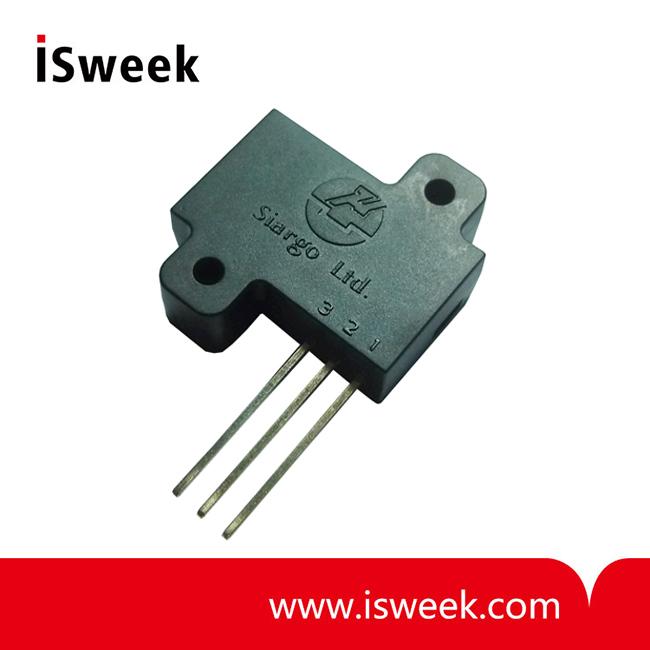

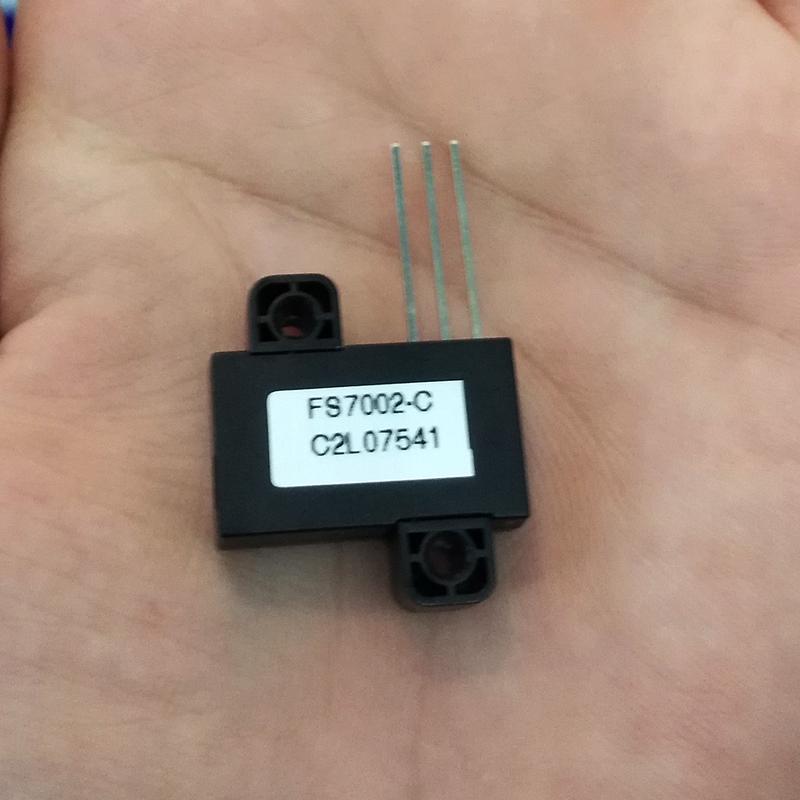

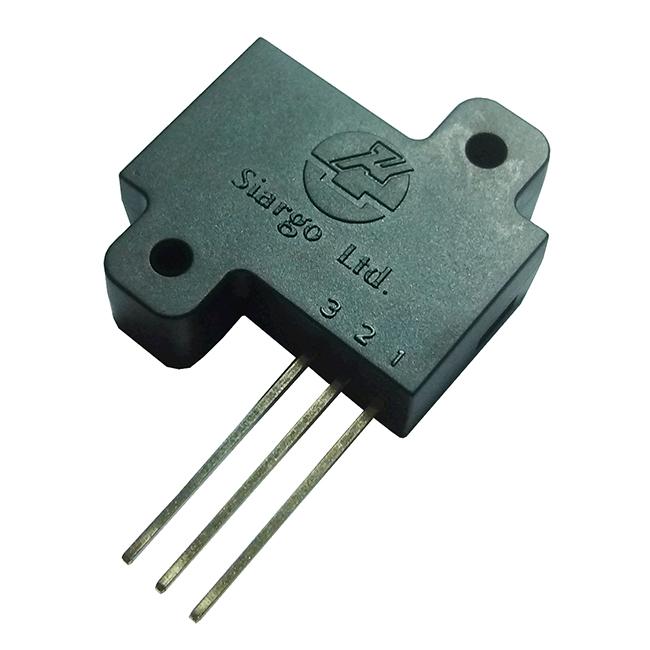

MEMS Mass Flow/Clog Sensors

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    FS7002-B/FS7002-C

  • Data Sheet

  • Package

    Original packaging

  • Specs

    FS7002-B/FS7002-C

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

FS7002 Series MEMS Mass Flow Sensors Description

FS7002 series mass Flow sensors can be used for open air space flow measurement or applied for clog sensing in an open space configuration. The sensor can measure air flow up to 10 m/sec with a fast response. The compact design make the installation an easy task. Examples are clog sensing in LCD projector; HVAC air flow monitoring, air fresher and fan status monitoring.

FS7002 Series MEMS Mass Flow Sensors Features and Applications
- Measure open space air flow up to 10 m/sec
- Fast response < 20 msec
- Compact miniature design
- Excellent sensitivity
- Bi-direction capability
- Additional customization available

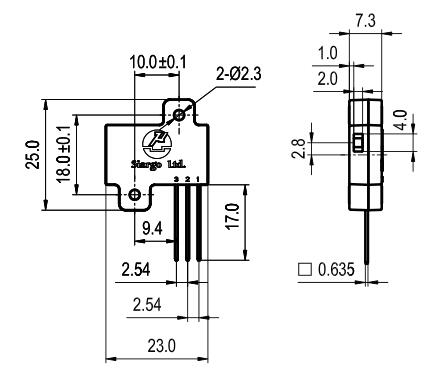

FS7002 Series MEMS Mass Flow Sensors Mechanical Dimensions


FS7002 Series MEMS Mass Flow Sensors Specifications

All data unless otherwise noted apply for measurement conditions: air, 20 °C, 101.325 kPa absolute pressure, in a fixed flow channel of 8mm in diameter.

Model
 FS7002-B
 FS7002-C
 Unit
Flow range
 0 ~ 5
 0 ~ 10
 m/s
Repeatability
 ± 3
 ± 2
 %FS
Response Time
 20 ms
Output
 Non-linear, Analog
Null Output1
 0.2 ~ 0.8
 Vdc
Full Scale Output1
 2.5 ~ 3.3
 Vdc
Power Supply
 5 ± 5%
 Vdc
Operating Current2
 < 10
 mA
Power Consumption
 < 50
 mW
Output Load
 Sourcing: 14; Sinking: 11
 mA
Pins Out
 3 Pin, 2.54 mm centers, 0.635 mm square
Working Temperature
 -10 ~ +70
 ℃
Storage Temperature
 -20 ~ +80
 ℃
Humidity
 < 95 %RH (No icing or condensation)
1 To obtain accurate flow measurement, let the sensor warm up 1 minute at power up.
2 The operating current is measured at 5.0 V supply without output load.
