LV-MaxSonar-EZ3 High Performance Ultrasonic Rangefinder

MB1030 LV-MaxSonar-EZ3
High Performance Ultrasonic Rangefinder

MB1030 LV-MaxSonar-EZ3 Ultrasonic Rangefinder Product Description
The LV-MaxSonar-EZ3 is a narrow beam sensor with good side object rejection. The LV-MaxSonar-EZ3 has slightly wider beam width than the MB1040 LV-MaxSonar-EZ4 which makes it a good choice for when the LV-MaxSonar-EZ4 does not have enough sensitivity for the application.

MB1030 LV-MaxSonar-EZ3 Ultrasonic Rangefinder Product Specifications
• Resolution of 1 inch
• 20Hz reading rate
• 42kHz Ultrasonic sensor measures distance to objects
• RoHS Compliant
• Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
• Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
• Maximum Range of 254 inches (645 cm)
• Operates from 2.5-5.5V
• Low 2.0mA average current requirement
• Small, light weight module
• Designed for easy integration into your project or product
• Narrow beam and good side object rejection
• Best for large object detection applications

MB1030 LV-MaxSonar-EZ3 Ultrasonic Rangefinder Features and Benefits
• Excellent side object rejection
• Low power consumption
• Easy to use interface
• Great for when MB1040 is not sensitive enough
• Large object detection
• Can be powered by many different types of power sources
• Can detect people up to approximately 5 feet

MB1030 LV-MaxSonar-EZ3 Ultrasonic Rangefinder Applications and Uses
• Landing flying objects
• Used with battery power
• Autonomous navigation
• Educational and hobby robotics

MB1030 LV-MaxSonar-EZ3 Ultrasonic Rangefinder Part Numbers

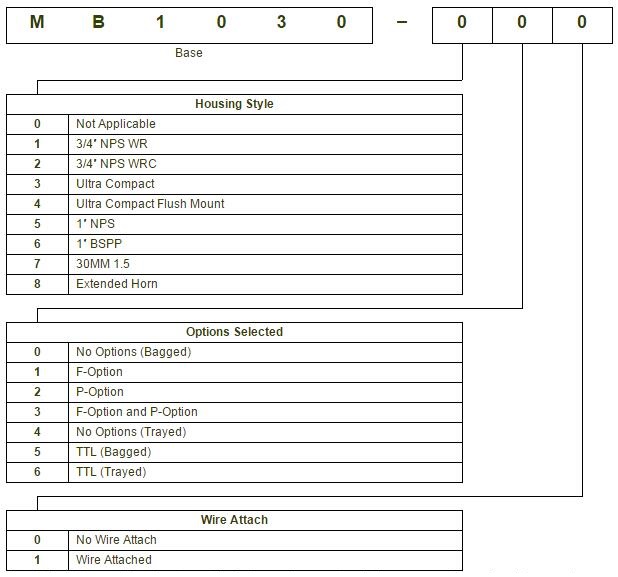

All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.

The following table displays all of the active and valid part numbers for this product.
