Low-power type Combustible gas sensor
-
Price
Price on request ≥1piece
-
Model Number
FC-8P -
Data Sheet
-
Package
Original packaging -
Specs
FC-8P -
Quantity
- +Send Inquiry
Find Similar Products
-
Ultra Low Power Digital Output NDIR CO2 Gas Sensor
Model Number：CozIR-A
MOQ：1
-
Ultra Low Power Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：COZIR-W/ExplorIR-W
MOQ：1
-
Low Cost HVAC Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：MisIR
MOQ：1
-
Probe Type NDIR CO2 Sensor
Model Number：COZIR-Probe
MOQ：1
-
High Speed Carbon Dioxide Sensor NDIR CO2 Sensor 20Hz 0-100%
Model Number：SprintIR-WF
MOQ：1
-
Infrared Gas Sensor for Oil Industry Methane Sensor
Model Number：PrimePell
MOQ：1
Product Description

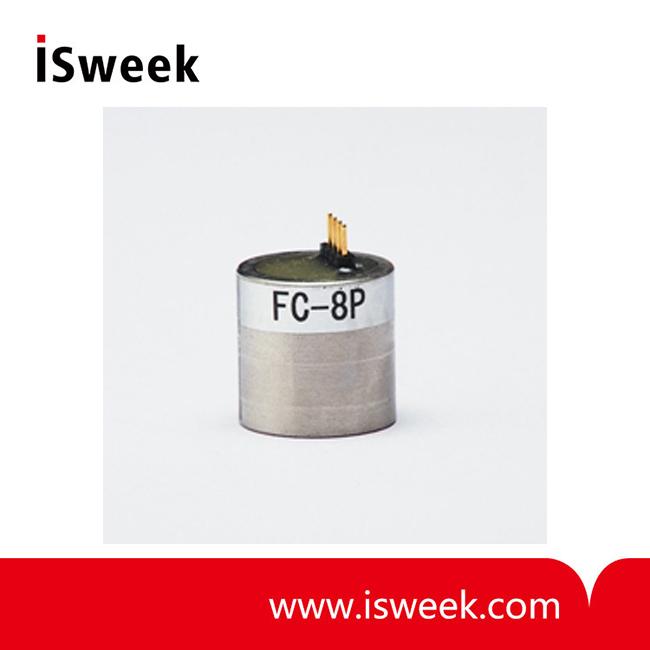

Low-power type Combustible gas sensor FC-8P Features:
• Liner output up to 100%LEL
• Good sensitivity and reproducibility
• Less temperature/humidity dependence
• Low power consumption
Low-power type Combustible gas sensor FC-8P Specifications:
|
Model |
FC-8P |
|
Measuring Gas |
Combustible gas (Methane etc.) in the air |
|
Detection Method |
Catalytic Combustion type |
|
Measuring Range |
0-100%LEL |
|
Response time |
Within 20 seconds at 90% response(Iso-butane 33%LEL) |
|
Operating Temperature Range |
-10 - 40℃ |
|
Supply Current |
1.8±0.03V(constant) approx.92mA |
|
Size |
φ20.0 x 20.0mm |
|
Weight |
Approx. 35g |
|
Guarantee |
1 year from invoice date |
|
Used in |
Gas monitors, FM-620E, FM-621E, MD-620E |
