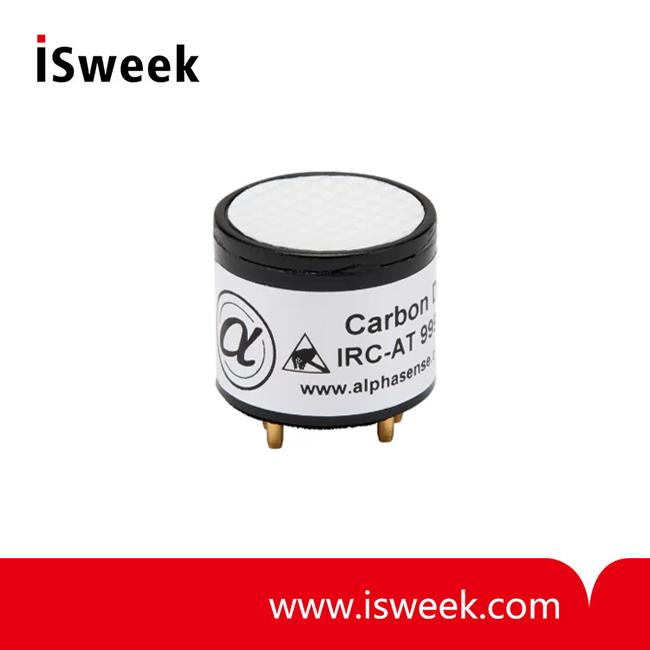

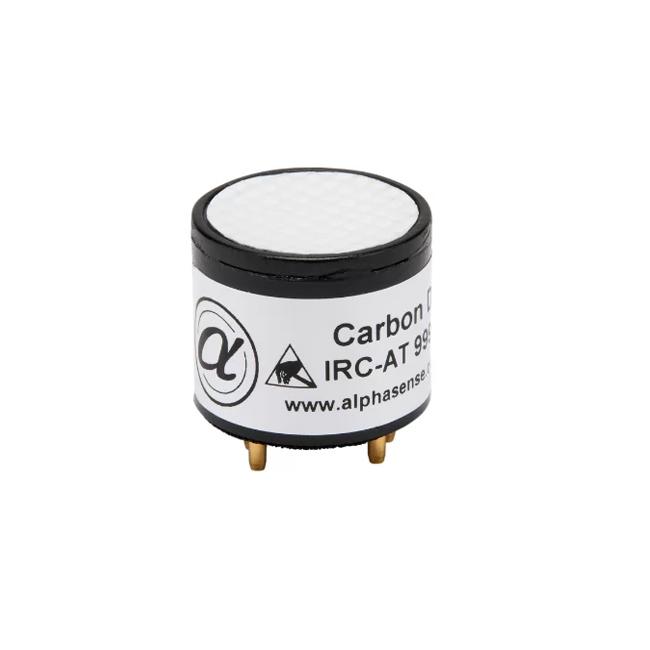

Infrared Carbon Dioxide (CO2) Sensor Thermopile Detector
-
Price
Price on request ≥1piece
-
Model Number
IRC-AT -
Data Sheet
-
Package
Original packaging -
Specs
IRC-AT -
Quantity
- +Send Inquiry
Find Similar Products
-
Ultra Low Power Digital Output NDIR CO2 Gas Sensor
Model Number：CozIR-A
MOQ：1
-
Ultra Low Power Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：COZIR-W/ExplorIR-W
MOQ：1
-
Oxygen Gas Sensor (O2 Sensor)
Model Number：O2-M2
MOQ：1
-
Low Cost HVAC Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：MisIR
MOQ：1
-
Probe Type NDIR CO2 Sensor
Model Number：COZIR-Probe
MOQ：1
-
High Speed Carbon Dioxide Sensor NDIR CO2 Sensor 20Hz 0-100%
Model Number：SprintIR-WF
MOQ：1
Product Description
IRC-AT Infrared Carbon Dioxide (CO2) Sensor Description
Alphasense CO2 and Methane infrared sensors are supplied in the industry standard miniature (20mm diameter) gas sensor housing.
Patented optics give the best signal to noise ratio of any 20mm diameter NDIR and universal linearisation constants allow easy implementation.
The on-board temperature sensor allows for software compensation, including ideal gas law correction.
CO2
The IRC-AT with dual channel thermopile detector. This CO2 sensor is designed for IAQ, safety, combustion and high CO2 process control applications.
Application notes explain linearisation, temperature compensation and circuitry.
The IRC-AT cover the entire concentration range of measurement, simply implement the appropriate linearisation constants in software for your required range:
Alphasense CO2 and Methane infrared sensors are supplied in the industry standard miniature (20mm diameter) gas sensor housing.
Patented optics give the best signal to noise ratio of any 20mm diameter NDIR and universal linearisation constants allow easy implementation.
The on-board temperature sensor allows for software compensation, including ideal gas law correction.
CO2
The IRC-AT with dual channel thermopile detector. This CO2 sensor is designed for IAQ, safety, combustion and high CO2 process control applications.
Application notes explain linearisation, temperature compensation and circuitry.
The IRC-AT cover the entire concentration range of measurement, simply implement the appropriate linearisation constants in software for your required range:
|
IAQ |
0 to 5,000ppm CO2 |
|
Safety |
0 to 5% CO2 |
|
Combustion |
0 to 20% CO2 |
|
Process control |
0 to 100% CO2 |
|
IRC-AT Infrared Carbon Dioxide (CO2) Sensor PERFORMANCE |
|
| Maximum Power Requirements | 5.0 VDC, 60 mA max. (50% duty cycle source drive) |
| Minimum Operating Voltage | 2.0 VDC, 20 mA max. (50% duty cycle source drive) |
| Source Drive Frequency | 3 Hz |
| Active Output in N2 (peak-to-peak) | 4 to 7 mV @ 3 Hz, 50% duty cycle |
| Reference Output in N2 (peak-to-peak) | 2 to 5 mV @ 3 Hz, 50% duty cycle |
| Response Time (t90) | < 40 s @ 20°C ambient |
| Warm-up Time | To final zero ± 100 ppm: < 30 s @ 20°C |
|
|
To specification: < 30 minutes @ 20°C |
|
|
|
|
IRC-AT Infrared Carbon Dioxide (CO2) Sensor LIFETIME |
|
|
MTBF |
> 5 years |
|
|
|
|
IRC-AT Infrared Carbon Dioxide (CO2) Sensor KEY SPECIFICATIONS |
|
|
Temperature Signal |
Integral thermistor (NTC, R 25 = 100KΩ B= 3940 K) |
|
Operating Temperature Range |
-20°C to +50°C (linear compensation from 0 to 40℃) |
|
Storage Temperature Range |
-40°C to +75°C |
|
Humidity Range |
0 to 95% rh non-condensing |
|
TYPE |
Range (Application) |
Accuracy (%FS,
using universal linearisation coefficients) |
Zero
Resolution (ppm) |
Full Scale
Resolution (ppm) |
Zero
Repeatability (ppm) |
Full Scale
Repeatability (ppm) |
Universal
lin. coeff. b |
Universal
lin. coeff. c |
Span
calibration conc. |
|
IAQ |
0 to 5000ppm (IAQ) |
1 | 10 | 50 |
± 20 |
± 50 |
0.000325 |
0.9363 |
4000 ppm |
|
Other |
0 to 5 % vol (Safety) |
1.5 |
10 |
100 |
± 20 |
± 500 |
0.5411 |
0.6716 |
4% |
|
0 to 20 % vol (Combustion) |
2.5 |
10 |
2000 |
± 20 |
± 2500 |
1.0459 |
0.2932 |
16% |
|
|
0 to 100 % vol (Process Control) |
tbc |
10 |
tbc |
± 20 |
tbc |
tbc |
tbc |
100% |
