Hydrogen sensor

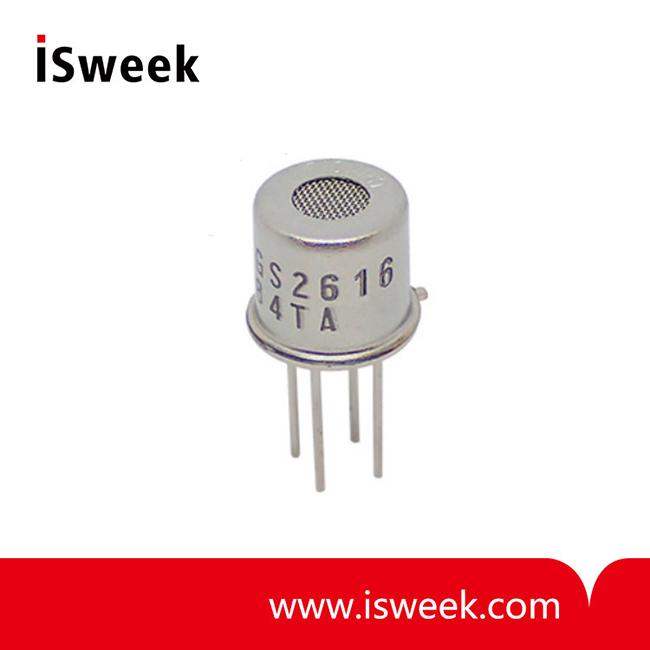

    The sensing element is comprised of a metal oxide semiconductor layer formed on an alumina substrate of a sensing chip together with an integrated heater, and it is housed in a standard TO-5 package. In the presence of a detectable gas, the sensor's conductivity increases depending on the gas concentration in the air. A simple electrical circuit can convert the change in conductivity to an output signal which corresponds to the gas concentration.

    TGS2616-C00 has a newly developed sensing element which reduces the influence of interference gases such as alcohol, resulting in highly selective response to hydrogen.

Features:

* High selectivity to hydrogen

* Small size and low power consumption

* Uses simple electrical circuit

Applications:

*Hydrogen detection for:

- transformer oil maintenance

- steel plant safety, etc.

* Portable gas detectors

* Leak detection for gas appliances

* Hydrogen leak detectors for fuel cells

Specifications & Structure and Dimensions:
